WT61C TTL 6 Axis High Precision AHRS IMU Sensor 2 Axis Tilt Angle (Roll Pitch) Inclinometer 3 Axis Accelerometer + Gyroscope MPU6050 Module (XYZ, 100HZ Output) Kalman Filter For PC/Android/Arduino

1.0 out of 5 stars 1 rating
Price: £24.00 & FREE Delivery . Delivery Details
Promotion Message Promotion Available. 3 promotions
  • Promotion Available.
    Save 10% on TTL Connection Cable when you purchase 1 or more TTL Connection Cable offered by WitMotion. Here's how (terms and conditions apply)
  • Promotion Available.
    Save 10% on 6-in-1 convert when you purchase 1 or more 6-in-1 convert offered by WitMotion. Here's how (terms and conditions apply)
  • Promotion Available.
    Save 10% on 3-in-1 Convert when you purchase 1 or more 3-in-1 Convert offered by WitMotion. Here's how (terms and conditions apply)
Note: This item is eligible for click and collect. Details
Pick up your parcel at a time and place that suits you.
  • Choose from over 13,000 locations across the UK
  • Prime members get unlimited deliveries at no additional cost
How to order to an Amazon Pickup Location?
  1. Find your preferred location and add it to your address book
  2. Dispatch to this address when you check out
Learn more
    This fits your .
  • Make sure this fits by entering your model number.
  • (1) Measurement : 2 Axis Tilt Angle ( Roll Pitch ) & 3 Axis (XYZ) Acceleration + Gyroscope / Gyro / Angular velocity Output
  • (2) Range : X-Axis (-180 degree, 180 degree) Y-Axis (-90 degree, 90 degree), Acceleration : 16g, Angular Velocity : +-2000 degree/second
  • (3) Output Frequency : Max 100Hz (Baud Rate 115200 Defaultly) / 20Hz (9600 Baud Rate).
  • (4) Technical Support : Provide with User manual & PC software  &  APP(Android) &  AD package  &  sample code: 51, STM32, Arduino,C++,C#,Matlab Sample Code.The link of documents shows as below: https://wiki.wit-motion.com/english/doku.php?id=inclinometer
  • (5) Help: Skype & WhatsApp : (+86) 13005457470 Mail:javin@wit-motion.com

Customers who bought this item also bought

Page 1 of 1 Start overPage 1 of 1
This shopping feature will continue to load items when the Enter key is pressed. In order to navigate out of this carousel please use your heading shortcut key to navigate to the next or previous heading.
Back
  1. MakerHawk Obstacle Avoidance Sensor Lidar Detector Tiny Lidar Module 0.1-12m Measurement Range Distance Resolution 1mm with UART and I2C Interface for Arduino, Pedestrian and Vehicle Detection
    4.4 out of 5 stars 16
    £30.99
    Only 15 left in stock.
Next

Special offers and product promotions

  • Save 10% on TTL Connection Cable when you purchase 1 or more TTL Connection Cable offered by WitMotion. Here's how (terms and conditions apply)
  • Save 10% on 6-in-1 convert when you purchase 1 or more 6-in-1 convert offered by WitMotion. Here's how (terms and conditions apply)
  • Save 10% on 3-in-1 Convert when you purchase 1 or more 3-in-1 Convert offered by WitMotion. Here's how (terms and conditions apply)
  • Amazon Business : For business-exclusive pricing, quantity discounts and downloadable VAT invoices. Create a free account

Compare with similar items


WT61C TTL 6 Axis High Precision AHRS IMU Sensor 2 Axis Tilt Angle (Roll Pitch) Inclinometer 3 Axis Accelerometer + Gyroscope MPU6050 Module (XYZ, 100HZ Output) Kalman Filter For PC/Android/Arduino
Bluetooth 2.0 BWT901CL AHRS IMU Wireless 9 Axis TTL 200Hz Sensor 3 Axis Tilt Angle Inclinometer Accelerometer Gyroscope Magnetometer MPU9250 Module With Charging Battery Support PC/Android/Arduino
BWT61CL Bluetooth 2.0 6 Axis AHRS IMU Sensor 2 Axis Roll Pitch Tilt Angle Inclinometer 3 Axis Accelerometer Gyroscope MPU6050 Module MEMS TTL 100Hz Output with charged battery for PC/Android/Arduino
WT901C High Accuracy 9 Axis RS485 Multiple Connected Kalman Filter,200HZ Output Sensor 3 Axis Gyroscope Accelerometer Tilt Angle Compass MPU9250 Inclinometer Support PC/Andriod/Arduino in Industry

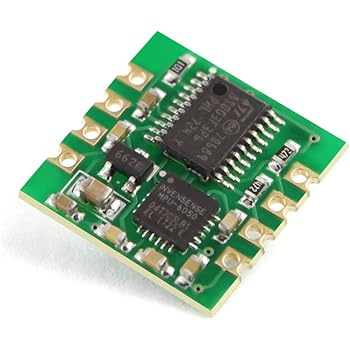

WITMOTION WT61 Sensor 2 Axis Tilt Angle & Vibration Amplitude Measure 3 Axis Accelerometer + Gyroscope MPU6050 Module Digital Inclinometer Support PC/Android/Arduino
HWT901B RS485 Military Grade 10 Axis Magnetic RM3100 Module Compensation Sensor 3 Axis Digital Angle Inclinometer Accelerometer Gyroscope Compass Barometer Support PC/Android/Arduino For Industry
Customer Rating 1.0 out of 5 stars (1) 3.0 out of 5 stars (14) 3.4 out of 5 stars (4) 5.0 out of 5 stars (2) 5.0 out of 5 stars (1) (0)
Price £24.00 £32.00 £29.00 £26.00 £22.00 £56.00
Shipping FREE Delivery . Delivery Details FREE Delivery . Delivery Details FREE Delivery . Delivery Details FREE Delivery . Delivery Details FREE Delivery . Delivery Details FREE Delivery . Delivery Details
Sold By WitMotion WitMotion WitMotion WitMotion WitMotion WitMotion
Compare with similar items

Have a question?

Find answers in product info, Q&As, reviews

There was a problem completing your request. Please try your search again later.
All Product Information Customer Q&As Customer Reviews

Your question may be answered by sellers, manufacturers, or customers who purchased this item, who are all part of the Amazon community.

Please make sure that you've entered a valid question. You can edit your question or post anyway.

Please enter a question.

Product details

Product Description

Main Features:

  • WT61C Gyroscope is good solution for angle measuring，acceleration measurement and angular velocity measurement,It integrates a 3-axis gyro and a 3-axis accelerometer.
  • Kalman filter combines the gyro and accelerometer to get high precision angle measurement,it can be used such as four-axis flight control and self-balancing robot, angle measurement and depth measuring and so on.
  • The module can get accurate attitude in a dynamic environment. Attitude measurement precision is 0.05degrees, high stability.
  • Using high-precision gyro accelerometer MPU6050, read the measurement data by serial port,No need to study complex I2C protocol of MPU6050. Keep I2C interface of MPU6050 to meet the needs of advanced users.With advanced digital filtering technology, reduce the measurement noise and improve measurement accuracy.
  • Using stamps holes gold plating, can be embedded in the user's PCB board Technical Indicator

Specifications:

  • Input voltage: 3.3V-5V
  • Consumption current: typical 10mA
  • Volume: 6 * 51 * 15 mm .
  • Measuring : Attitude angle: 2 axis ( Roll and Pitch ) Acceleration: 3 Axis Angular Velocity: 3 Axis
  • Range: Acceleration: ± 16g, angular velocity: ± 2000 ° / s.
  • The data output frequency 100Hz (baud rate 115200) / 20Hz (9600 baud rate).
  • Data Interface: Serial (TTL level), I2C (directly connected MPU6050, no attitude output).
  • Baud rate 115200kps / 9600kps.
  • Provide single-chip analytical sample code.

Note:Angle of Z axis will have accumulated error, because there is no magnetic field correction.Packing list:

  • 1x WT61C Gyro Sensor
  • 1x instruction card with tutorial website

Read more
wt61c

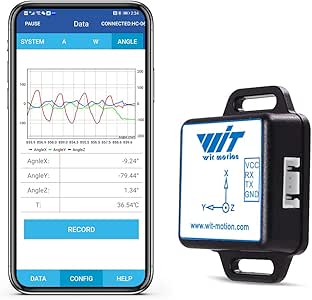

Android App

WT61C supports TTL Serial port connection with Android smartphone.

Easy connection, simply choose the module (WT61) and start testing.

Notice:

Please click the model you bought, you can find the User Manual & PC software & APP & sample code & AD package by yourself.The tutorial website will be offered on the instruction card and product link.

wt61c

Android App interface

Data Interface

Acceleration data

Angle data on Interface

Angle data

Calibration

Calibration interface

1

PC Software Interface

Connection with PC

  • wiring connection via a usb-ttl converter.

1

PC Software

Data Table

Data Interface

Graph Line

Data Graph

3D Unity

3D Interface

1 1 1 1 1 1
6 Axis AHRS Module WT61 6 Axis Bluetooth 2.0 IMU Inclinometer BWT61CL 9 Axis Bluetooth 5.0 IMU Module WT901BLE 9 Axis Bluetooth 5.0 AHRS Inclinometer WT901BELCL 6 Axis Metal Case Inclinometer SINDT RS485 9 Axis Military Grade Metal Case Inclinometer HWT905 TTL
Compatibility Windows PC, Android smartphones, MCU Arduino, Raspberry pi, etc. Windows PC, Android smartphones, MCU Arduino, Raspberry pi, etc. Android / IOS smartphones, MCU Arduino, Raspberry pi, etc. Android / IOS smartphones, MCU Arduino, Raspberry pi, etc. Windows PC, MCU Arduino, Raspberry pi, etc. Windows PC, Android , MCU Arduino, Raspberry pi, etc.
Connectivity TTL TTL, Bluetooth 2.0 TTL, Bluetooth 5.0 low-comsumption TTL, Bluetooth 5.0 low-comsumption RS485 TTL
Input Voltage 3.3-5V 3.3-5V 3.3-5V 3.3-5V 9-36V 3.3-5V
3-Axis Acceleration ✓ ✓ ✓ ✓ ✓ ✓
3-Axis Angular velocity (Gyroscope) ✓ ✓ ✓ ✓ ✓ ✓
Angle Axis Roll Pitch Roll Pitch Roll Pitch Yaw Roll Pitch Yaw Roll Pitch Roll Pitch Yaw
3-Axis Magnetic Field ✓ ✓ ✓
Output Frequency 0.1HZ--100HZ 0.1HZ--100HZ 50HZ Max, 10HZ default 50HZ Max, 10HZ default 0.1HZ--200HZ 0.1HZ--200HZ
Case Plastic Case With Charging Port Plastic Case With Micro USB Port Metal Case-IP67 & Anti-vibration Metal Case-IP67 & Anti-vibration
Advantage Tiny Module Bluetooth 2.0 Wireless Connection With Rechargable Battery Bluetooth 5.0 Low Consumption & Multiple Connection Bluetooth 5.0 Low Consumption and >50m Distance Connection Built-in Rechargable Battery & Multiple Connection High Accuracy & High Performance Magnetometer RM3100 & Temperature SCA3300 Compensation
