| Manufacturer | UNI-T |
|---|---|
| Part number | B4Q094 |
| Item Weight | 170 g |
| Product Dimensions | 17.5 x 3.35 x 5.99 cm; 170 g |
| Batteries | 2 A batteries required. |
| Item model number | UT210E |
| Size | UT210E |
| Colour | UT210E |
| Style | Modern |
| Material | ABS |
| Power source type | Battery Powered |
| Item Package Quantity | 1 |
| Specification met | ce,cetlus |
| Included components | Batteries, test leads (UT210C/UT210D/UT210E), point contact temperature probe |
| Batteries included? | No |
| Batteries Required? | No |
| Battery Cell Type | Alkaline |
-
-
-
-
-
-
-
VIDEO -
Image Unavailable
Colour:
-
-
-
- To view this video download Flash Player

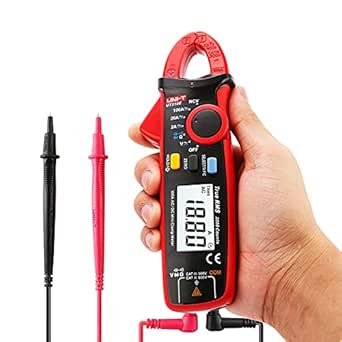

UNI-T UT210D/UT201E Digital Clamp Meter True RMS Voltage Resistance Capacitance Multimeter Temperature Measure Auto Range Electrical (ABS)
Purchase options and add-ons
| Brand | UNI-T |
| Power source | Battery Powered |
| Style | Modern |
| Colour | UT210E |
| Item weight | 170 Grams |
About this item
- Features of UT210 Series Mini Clamp Meters Certifications: CE, UKCA, cETLus
- ● Ergonomic and lightweight ● Auto range, 2~3 times/s sampling rate ● LCD backlight, data hold ● Auto power off, low battery indication
Frequently bought together

Products related to this item
Important information
Legal Disclaimer
Uni-t ut210e true rms ac/dc current mini clamp meters w/ capacitance tester display count: 2000 auto range: √ jaw capacity: 17mm true rms: √ diode: around 3.0v v.f.c.: √ ncv: √ data hold: √ zero mode: √ lcd backlight: √ auto power of: around 15 minutes continuity buzzer: √ low battery indication: ≤2.5v input protection: √ input impedance for dcv: ≥10mî specifications: model:ut210e ac current (a):2a/20a/100a (2.5%+5) dc current (a):2a/20a/100a (2%+3) ac voltage (v):2v/20v200v/600v (1.0ï¼...+3) dc voltage (v):200mv/2v/20v200v/600v (0.7%+3) resistance (î):200î/2kî/20kî/200kî/2mî/20mî (1.0ï¼...+2) capacitance (f):2nf/20nf/200nf/2î¼f/20î¼f/200î¼f/2mf/20mf (4%+5) general characteristic: product net weight: 170g product size: 175mm 60mm 33.5mm power: aaa 1.5v x 2(not included) lcd size: 39.3mm 21.5 mm product color: red and grey package size: 18.6 7.2 5.9cm / 7.3 2.8 2.3in package weight: 311g / 11oz package list: 1 uni-t ut210e mini clamp meters 1 test lead 1 english manual Notice please: battery no include!
Product information
Technical Details
Additional Information
| ASIN | B00O1Q2HOQ |
|---|---|
| Customer Reviews |
4.7 out of 5 stars |
| Best Sellers Rank | 4,793 in Business, Industry & Science (See Top 100 in Business, Industry & Science) 2 in Ampere Meters 96 in Electrical Testing |
| Date First Available | 10 Oct. 2014 |
Feedback
Products related to this item
What's in the box?
From the brand
UNI-T Meter and Instrument
Test&Measurement Products and Solutions Provider
-
UNI-T is your testing specialist.Since 1988,Uni-Trend Technology has been the developer,manufacturer and marketer of reliable testing,measuring and inspecting products to over 100 countries and regions globally.
Facing the rapid technological advancement in today’s society, Uni-Trend maintains our goal of producing the highest quality standard products through continuous research and development.
-
Test & Protect the Environment
Digital multimeter is a must-have tool for professional electrical engineers, electrical technicians and electronics engineers.
-
UNI-T Digital Clamp Meters
handheld devices with multimeter functions and able to measure AC/DC current directly without breaking the electrical conductor.
-
Tools for Home DIY & Test
-
UNI-T Infrared Thermal Imager
conduct non-contact detection leakage and other faults of building materials, and evaluate their sustainability in advance
-
Insulation Resistance Testers
Insulation Resistance Testers is widely used in the measurement and maintenance of power equipment and power supply circuits.
-
UNI-T Meter and Instrument
We believe technology and innovation are important driving forces for the development of the new world. Innovation can create value.
Product Description
UNI-T UT210E Mini Digital Clamp Meter True RMS Auto Range AC DC Non Contact Multimeter Tester
UT210 series Mini Clamp is provided with the features of high reliability, security, auto range , and small-size. It can test the small current signal precisely, the chip itself has VFC start-up model, and there is a Specific filter circuit inside, which can filter the high frequency interference signal and ensure the accuracy of the measurement. It can be applied in the situation such as variable frequency voltage and current with VFC. It has the design of full ange of overload protection, along with the unique exterior design,which makes it a more remarkable new practical electric testing instrument. UT210 series Mini Clamp is an ideal tool that can be applied to colleges and universities,smelting, telecommunications, manufacturing, oil,defense,power, foundry, circuit of power equipment inspection, and maintenance and repairs.
|
|
|
|
|---|---|---|
Clamp Jaw17mm Clamp Jaw, unique design with NCV function. |
LCD Large ScreenLCD display screen and backlight function |
Small SizeLength: 175mm (6.89 inches) Width: 60mm (2.36 inches) lightweight and portable |
Specifications:
Model: UT210E
AC Current (A):2A/20A/100A ±(2.5%+5)
DC Current (A):2A/20A/100A ±(2%+3)
AC Voltage (V):2V/20V200V/600V ±(1.0%+3)
DC Voltage (V):200mV/2V/20V200V/600V ±(0.7%+3)
Resistance (Ω):200Ω/2KΩ/20KΩ/200KΩ/2MΩ/20MΩ ±(1.0%+2)
Capacitance (F):2nF/20nF/200nF/2μF/20μF/200μF/2mF/20mF ±(4%+5)
- AC DC Current measurement
- Resistance measurement
- LCD backlight
- Continuity buzzer
- VFC measurement
- NCV ,non contact detection
- Auto Range
- True RMS Measuremetn
|
|
|
|
|---|---|---|
NCV TestIt with noncontact electric field measure if you want to measure whether there is AC voltage or electromagnetic filed, you can chose range. |
Resistance MeasurementResistance (Ω):200Ω/2KΩ/20KΩ/200KΩ/2MΩ/20MΩ ±(1.0%+2) |
Multimeter FunctionIt's not only a clamp meter, but also with multimeter function, you can test AC DC voltage, current, resistance, capacitance, Diode. |
|
|
|
|
|---|---|---|---|
| UT210D | UT210E | CM2100 | |
|
Add To Basket
|
Add To Basket
|
||
| Customer Reviews |
4.7 out of 5 stars
703
|
4.7 out of 5 stars
3,499
|
4.6 out of 5 stars
43
|
| Price | £44.16£44.16 | £36.41£36.41 | — |
| AC current(A) | 200A±(2.5%+8) | 100A±(2.5%+5) | 100A±(2.5%+5) |
| DC current (A) | 200A±(2%+3) | 100A±(2%+3) | 100A±(2%+3) |
| AC voltage (V) | 600V±(1%+3) | 600V±(1%+3) | 600V±(0.8%+10) |
| DC voltage (V) | 600V±(0.7%+3) | 600V±(0.7%+3) | 600V±(0.5%+5) |
| Resistance (Ω) | 20MΩ±(1%+2) | 20MΩ±(1%+2) | 200MΩ±(5.0%+10) |
| Frequency (Hz) | 60kHz±(0.1%+4) | 20MHZ±(0.1%+5) | |
| Capacitance (F) | 20mF±(4%+5) | 20mF±(4%+5) | 20mF±(3.0%+10) |
| Temperature | -40~1000℃/-40~1832℉ |
|
|
|
|
|---|---|---|---|
| UT210D Clamp Meter | UT210E Clamp Meter | CM2100 Clamp Meter | |
|
Add To Basket
|
Add To Basket
|
||
| Customer Reviews |
4.7 out of 5 stars
703
|
4.7 out of 5 stars
3,499
|
4.6 out of 5 stars
43
|
| Price | £44.16£44.16 | £36.41£36.41 | — |
| Display count | 2000 | 2000 | 2000 |
| Continuity buzzer | ✓ | ✓ | ✓ |
| Jaw Opening | 17mm | 17mm | 17mm |
| Diode Test(Around 3.0V) | ✓ | ✓ | ✓ |
| True RMS | ✓ | ✓ | ✓ |
| V.F.C | ✓ | ✓ | |
| Data Hold | ✓ | ✓ | ✓ |
| LCD Backlight | ✓ | ✓ | ✓ |
| Automatic Off (5 minutes) | ✓ | ✓ | ✓ |
| Low Voltage Display(≤2.5V) | ✓ | ✓ | ✓ |
Brands in this category on Amazon
Looking for specific info?
Customer reviews
Customer Reviews, including Product Star Ratings, help customers to learn more about the product and decide whether it is the right product for them.
To calculate the overall star rating and percentage breakdown by star, we don’t use a simple average. Instead, our system considers things like how recent a review is and if the reviewer bought the item on Amazon. It also analyses reviews to verify trustworthiness.
Learn more how customers reviews work on AmazonCustomers say
Customers like the value for money, accuracy, and functionality of the electric circuit testing device. They mention it's an excellent instrument for current measurement, works well, and feels like quality. Some are also happy with its compactness and versatility. However, some customers have mixed opinions on the dc current measurement.
AI-generated from the text of customer reviews
Customers appreciate the value for money of the electric circuit testing device. They mention it's compact and has great quality for the price.
"...The fact that it measures not only AC but DC Current too, is worth the price in itself.To date, I am very impressed...." Read more
"...very much value for money,an improvement to the device would be to improve the back light, as you can see from the photos, its not great." Read more
"...circuits, but for general indicator for diagnostics this is good enough for the price...." Read more
"...correctly, this is an excellent device, very compact and great quality for the price. 5 stars!" Read more
Customers like the accuracy of the electric circuit testing device. They mention it's impressive on DCV and Ohms, and the voltage meter is accurate down to 0.01V in the voltage range and 10mV in the current range. The capacitance meter function is also great and accurate, covering a pretty wide measurement range. Some say it's good for measuring quiescent current on their cars.
"...Granted it isn't perfect but it's pretty damned close.Acceptably accurate, even if you have to keep 'zero-ing' to obtain an accurate..." Read more
"...After some more tests, i found the meter to be very accurate at DC measurement, with the odd reading out by 1 or 2 ma at times...." Read more
"...current. But this meter genuinely measures d.c. current...." Read more
"...Voltmeter is accurate down to 0.01V in the voltage range and 10mV in the millivolt range. Current is not as accurate...." Read more
Customers are satisfied with the meter quality. They mention it's a good tool, excellent for current measurement, and easy to hang anywhere. Some say it's compact, simple to use, and intuitive.
"...All in all, a Very Nice bit of kit that is very handy...... Literally, as it sits very comfortably in one hand, is simple to use and view the..." Read more
"...earths magnetic field can make fluctuations in readings, this meter coped very well...." Read more
"This is a brilliant meter, well made, compact and versatile...." Read more
"...Used correctly, this is an excellent device, very compact and great quality for the price. 5 stars!" Read more
Customers are satisfied with the functionality of the electric circuit testing device. They mention it's good enough to get the job done, excellent, and very capable. Some say it works brilliantly for car electrics and has lots of features you'd only normally find in clamps.
"...I'm left-handed, so the trigger being situated on the left, works Very Well for me, whereas if I hold it in my right hand, I find it awkward to use..." Read more
"...It is easy to use and performs well, the clamp opens to about the width of your finger which is enough for small applications...." Read more
"Great item works well Thank you" Read more
"...calibrated equipment (typical accuracy 0.05%) and was very impressed with its performance...." Read more
Customers like the build quality of the electric circuit testing device. They mention it feels like quality, is reliable, and stable. Some also say it's simple to use and reasonably foolproof.
"This is a brilliant meter, well made, compact and versatile...." Read more
"Nice solid feel, but I wouldn't think it would last too long being bumped off the bench onto a hard floor...." Read more
"Simple to use, reasonably foolproof, also has contact probes for voltage and resistance...." Read more
"...Altogether I am well pleased with the quality and accuracy of this little instrument, and it has now become an indispensable accessory, highly..." Read more
Customers like the compactness of the electric circuit testing device. They mention it fits in panels quite well, is the best pocket-sized multimeter/clamp that they have used, and it's good for getting into small spaces. It covers a pretty wide measurement range and has many traditional multimeter functions.
"This is a brilliant meter, well made, compact and versatile...." Read more
"...Used correctly, this is an excellent device, very compact and great quality for the price. 5 stars!" Read more
"...as well as AC (many only do AC); (b) it is fairly compact, with a smallish clamp - good for getting into small spaces on a breadboard ; (c) this..." Read more
"Used for a couple of weeks now, the best pocket sized multimeter/clamp that I have used as a on the go maintenance engineer...." Read more
Customers appreciate the versatility of the electric circuit testing device. They say it's a great piece of kit, has many traditional multimeter functions, and is an excellent product when used within its limits.
"This is a brilliant meter, well made, compact and versatile...." Read more
"Good bit of kit but seems to be less accurate when using on DC amp clamp on low amps. Can fluctuate and miss read." Read more
"...A very useful tool for the toolbox, possibly a bit delicate for hard professional use, treat it gently and keep it clean and i'm sure it'll be fine." Read more
"...with ac/dc voltage and current measurement and then capacitance ... so versatile and a good price" Read more
Customers have mixed opinions about the dc current measurement of the product. Some mention it's an excellent low current clamp meter, while others say it doesn't measure current with the probes and doesn't measure DC volts.
"Being able to read a few milliamps is great. Having capacitance and non-contact voltage are also great and the price was right (£44 in 2023-05)...." Read more
"...Testing AC and DC current is nice. As well as having diode and capacitence test. Also I can use the clamp to hang it up. When using the meter...." Read more
"...Current is not as accurate...." Read more
"...The DC current clamp capability is outstanding. Meters capable of this function used to cost hundreds of pounds until recently!..." Read more

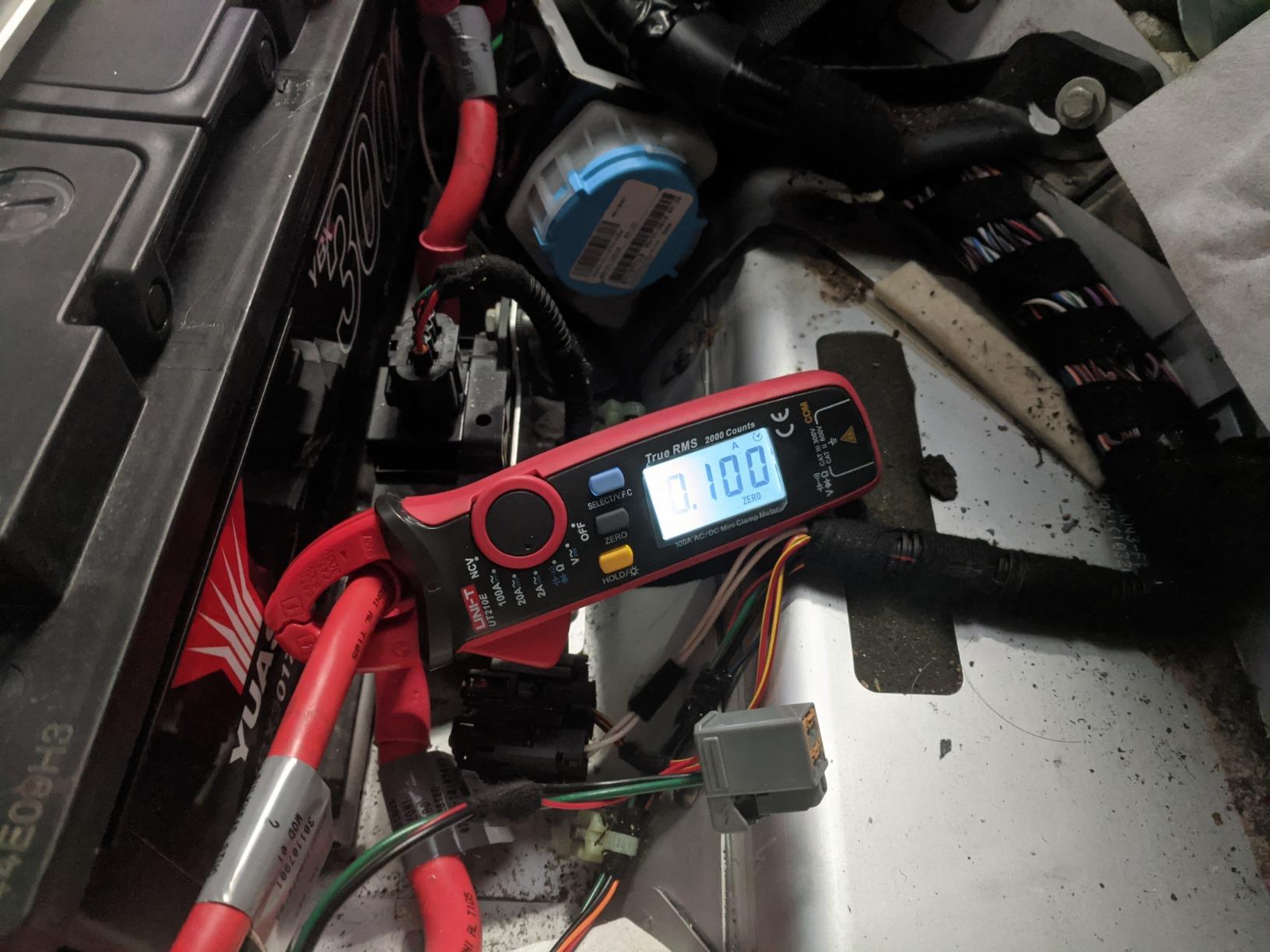

Reviews with images
Used For Low Current Measurement
-
Top reviews
Top reviews from United Kingdom
There was a problem filtering reviews right now. Please try again later.
The fact that it measures not only AC but DC Current too, is worth the price in itself.
To date, I am very impressed. Granted it isn't perfect but it's pretty damned close.
Acceptably accurate, even if you have to keep 'zero-ing' to obtain an accurate reading.
The probes that are included are a tad slow when testing for Continuity, but this is down to the probes rather than the Tester. As such, if you're fussy, you may want to use some better-quality ones.
Also, the included storage bag is a little soft and flimsy. It's better than nothing but a harder case would provide better protection..... Again, for the price, one can't really complain.
I'm left-handed, so the trigger being situated on the left, works Very Well for me, whereas if I hold it in my right hand, I find it awkward to use the trigger but maybe you Right Handers, don't have that issue!
All in all, a Very Nice bit of kit that is very handy...... Literally, as it sits very comfortably in one hand, is simple to use and view the readings which are very/acceptably accurate.
Basically, Highly Recommended!!!
I have used expensive AMP-Clamps but their price from the likes of Fluke, MAC and Snapon, all have been either unable to read the required 0.001AMP range or far to expensive for the job intended.
A Pico-Scope is the go to for accuracy but the hassle of setting the thing up for something as simple as a parasitic drain, doesn't warrant the extra time.
My plan was to buy a relatively inexpensive AMP-Clamp, This is what I bought and these are my thoughts/results.
Its absolutely awesome, after some testing, I would buy another in a flash.
Again mainly used for parasitic drains, the basis of my testing was low current measurement.
As with many clamps, zero the meter holding the clamp as close as possible and in the same direction of flow. The earths magnetic field can make fluctuations in readings, this meter coped very well.
All tests were checked with my calibrated workshop meter.
All tests were using DC.
First test was 12v flowing through a 100 ohm resistor, {12/100 = 0.120} this would be read as 120ma, not mega low but a test neither the less. Result - Absolutely spot on (photo)
Second test was a measurement of a 50ma Fan, the measurement I received from the clamp was 51ma, Still happy
3rd test was on an actual vehicle with a complaint of a battery drain. Usual drain would be under 15ma on this particular vehicle, I see alot of these cars too and parasitic drain are not uncommon, I must admit, this was the main factor for my buying this meter, in this case its an Aston Martin DB9.
Results -
Drain found - 100ma
After removal of Parasite - 9ma
Tested to be sure with a meter in series, all reading were correct, I now trust this meter.
After some more tests, i found the meter to be very accurate at DC measurement, with the odd reading out by 1 or 2 ma at times.
very much value for money,
an improvement to the device would be to improve the back light, as you can see from the photos, its not great.
Reviewed in the United Kingdom on 20 June 2020
I have used expensive AMP-Clamps but their price from the likes of Fluke, MAC and Snapon, all have been either unable to read the required 0.001AMP range or far to expensive for the job intended.
A Pico-Scope is the go to for accuracy but the hassle of setting the thing up for something as simple as a parasitic drain, doesn't warrant the extra time.
My plan was to buy a relatively inexpensive AMP-Clamp, This is what I bought and these are my thoughts/results.
Its absolutely awesome, after some testing, I would buy another in a flash.
Again mainly used for parasitic drains, the basis of my testing was low current measurement.
As with many clamps, zero the meter holding the clamp as close as possible and in the same direction of flow. The earths magnetic field can make fluctuations in readings, this meter coped very well.
All tests were checked with my calibrated workshop meter.
All tests were using DC.
First test was 12v flowing through a 100 ohm resistor, {12/100 = 0.120} this would be read as 120ma, not mega low but a test neither the less. Result - Absolutely spot on (photo)
Second test was a measurement of a 50ma Fan, the measurement I received from the clamp was 51ma, Still happy
3rd test was on an actual vehicle with a complaint of a battery drain. Usual drain would be under 15ma on this particular vehicle, I see alot of these cars too and parasitic drain are not uncommon, I must admit, this was the main factor for my buying this meter, in this case its an Aston Martin DB9.
Results -
Drain found - 100ma
After removal of Parasite - 9ma
Tested to be sure with a meter in series, all reading were correct, I now trust this meter.
After some more tests, i found the meter to be very accurate at DC measurement, with the odd reading out by 1 or 2 ma at times.
very much value for money,
an improvement to the device would be to improve the back light, as you can see from the photos, its not great.
It is easy to use and performs well, the clamp opens to about the width of your finger which is enough for small applications. Voltmeter is accurate down to 0.01V in the voltage range and 10mV in the millivolt range. Current is not as accurate. If you are measuring large current, the Amp range is acceptable but in the mA range, it could make difference depending on the component requirements, TV, computer, PSUs, other sensitive electronic circuits, but for general indicator for diagnostics this is good enough for the price. I do find the auto ranging function sometimes not performing at all, and sometimes taking a long time, sometimes having to constantly select the AC/DC switch or the rotary dial.
I would like to see auto ranging for current without the need to select 2A and 20A, sometimes the meter struggles to display reading appropriately. I needed to see mA but the meter decided to display A range, removing my need to see current value to the accuracy I needed to measure, 0.01A could be anything from 100mA to 199mA and needing to determine 150mA made using this a bit difficult. I have not checked but other amp clamps in the range might perform better but I did not check and suspect the price would easily go over £50
I would also prefer the meter to either have a mechanical AC/DC switch or an AC/DC setting with memory, so not having to constantly switch to DC every time I switch the meter off or change the dial, because it always defaults back to AC.
