| Brand | Noctua |
|---|---|
| Product Dimensions | 12 x 2.5 x 12 cm; 299 Grams |
| Item model number | NF-F12 PWM |
| Manufacturer | Noctua |
| Color | Brown |
| Standing screen display size | 30 Centimetres |
| Voltage | 12 Volts |
| Are Batteries Included | No |
| Item Weight | 299 g |
Other Sellers on Amazon
& FREE Delivery
87% positive over last 12 months
85% positive over last 12 months
94% positive over last 12 months
Add Extra Protection? Check if this cover meets your needs
from London General Insurance Company Ltd. £2.59
- From the moment your product’s delivered it will be covered for accidental damage and any mechanical/electrical faults not covered by the manufacturer’s warranty. Cover is for UK residents who are over 18 years old.
- No added costs when making a claim; no excess to pay or any charges for parts, labour or callout.
- Easy to make a claim by phone or email. If your product can’t be repaired, it will either be replaced or we’ll issue an Amazon e-gift card to the value of a replacement.
- Cancel anytime: Full refund within 45 days if no claim has been made, pro-rated refund thereafter less claim costs.
- For full product description, please read the Insurance Product Information Document and policy terms and conditions by following the link(s) provided. Please note that another insurance product which has different terms might be available on our website when accessed on a laptop or desktop PC.
Add Extra Protection? Check if this cover meets your needs

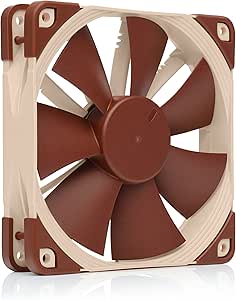

Noctua NF-F12 PWM, Premium Quiet Fan, 4-Pin (120mm, Brown)
| Price: | £19.99£19.99 |
- Choose from over 13,000 locations across the UK
- Prime members get unlimited deliveries at no additional cost
- Find your preferred location and add it to your address book
- Dispatch to this address when you check out
Enhance your purchase
| Item dimensions L x W x H | 12 x 2.5 x 12 centimetres |
| Brand | Noctua |
| Power connector type | 4-Pin |
| Voltage | 12 Volts |
| Cooling method | Water |
| Compatible devices | Desktop |
| Noise level | 22.4 dB |
| Maximum rotational speed | 1500 RPM |
About this item
- Make sure this fits by entering your model number.
- Premium quiet fan, 120x120x25 mm, 12V, 4-pin PWM, max. 1500 RPM, max. 22.4 dB(A), >150,000 h MTTF
- Award-winning 120x25mm fan with Focused Flow frame for high static pressure and superior quiet cooling performance
- Ideal for CPU heatsinks (e.g. Noctua NH-U12(S) series) and water cooling radiators, perfect replacement fan for loud all-in-one (AIO) coolers
- 4-pin PWM version for automatic speed control via 4-pin PWM fan headers, broad 300-1500rpm speed range (1200rpm max. with supplied Low-Noise Adaptor)
- Includes anti-vibration mounts, fan screws, Low-Noise Adaptor, extension cable and y-cable for running two PWM fans on the same header
Frequently bought together
Recommended from our brands
Have a question?
Find answers in product info, Q&As, reviews
Your question may be answered by sellers, manufacturers or customers who bought this product.
Please make sure that you've entered a valid question. You can edit your question or post anyway.
Please enter a question.
Featured items you may like
Customers who viewed this item also viewed
Compare with similar items
This item
Noctua NF-F12 PWM, Premium Quiet Fan, 4-Pin (120mm, Brown)
|
Noctua NF-A12x25 PWM, Premium Quiet Fan, 4-Pin (120mm, Brown)
|
Noctua NF-P12 redux-1700 PWM, High Performance Cooling Fan, 4-Pin, 1700 RPM (120mm, Grey)
|
Noctua NF-A14 PWM, Premium Quiet Fan, 4-Pin (140mm, Brown)
|
Noctua NF-S12A PWM, Premium Quiet Fan, 4-Pin (120mm, Brown)
|
Noctua NF-F12 iPPC 3000 PWM, Heavy Duty Cooling Fan, 4-Pin, 3000 RPM (120mm, Black)
|
|
|---|---|---|---|---|---|---|
| Customer Rating | 4.9 out of 5 stars (5454) | 4.9 out of 5 stars (3391) | 4.8 out of 5 stars (8494) | 4.9 out of 5 stars (3590) | 4.8 out of 5 stars (2120) | 4.8 out of 5 stars (897) |
| Price | £19.99 | £26.49 | £12.99 | £21.97 | £19.99 | £24.99 |
| Shipping | FREE Delivery on your first eligible order to UK or Ireland. Details | FREE Delivery . Delivery Details | FREE Delivery on your first eligible order to UK or Ireland. Details | FREE Delivery . Delivery Details | FREE Delivery on your first eligible order to UK or Ireland. Details | FREE Delivery . Delivery Details |
| Sold By | NOCTUA - Designed in Austria | NOCTUA - Designed in Austria | NOCTUA - Designed in Austria | NOCTUA - Designed in Austria | NOCTUA - Designed in Austria | NOCTUA - Designed in Austria |
| Item Dimensions | 12 x 2.5 x 12 cm | 12 x 2.5 x 12 cm | 12 x 2.5 x 12 cm | 14 x 2.5 x 14 cm | 12 x 2.5 x 12 cm | 12 x 2.5 x 12 cm |
Important information
Legal Disclaimer
We ship from France, customs fees may apply to your order.
Product information
Technical Details
Additional Information
| ASIN | B00650P2ZC |
|---|---|
| Customer Reviews |
4.9 out of 5 stars |
| Best Sellers Rank |
15,132 in Computers & Accessories (See Top 100 in Computers & Accessories)
69 in Thermal Management Products 198 in Fans & Cooling |
| Date First Available | 9 Nov. 2011 |
Warranty & Support
Feedback
Product Description
Teaming up eleven stator guide vanes with a specially conceived seven blade impeller, the NF-F12’s Focused Flow system creates outstanding static pressure and focuses the airflow for superior performance on heatsinks and radiators. At the same time, a wide range of advanced aerodynamic design measures, second generation SSO-Bearing and Noctua’s new, custom designed PWM IC for fully automatic control assures astounding quietness of operation. The NF-F12 comes with modular cabling, integrated anti-vibration pads and two speed settings for full flexibility. Its commanding performance, exhaustive set of features and Noctua’s trusted premium quality make it an elite choice for use on air coolers, radiators and other pressure demanding applications.
Focused Flow frame
Designed for pressure demanding applications such as heatsinks and radiators, the Focused Flow frame features eleven stator guide vanes that straighten, channel and focus the airflow, which allows the NF-F12 to rival the performance of conventional fans running at much faster speeds.
|
|
|
|
|
|---|---|---|---|
Heptaperf ImpellerCustom designed for the new Focused Flow frame and to work in tandem with the eleven stator guide vanes, the NF-F12's seven blade Heptaperf impeller has been carefully optimised to achieve a perfect balance between power and quietness. |
SSO2 bearingThe NF-F12 is the first fan to feature the further optimised second generation of Noctua's renowned, time-tested SSO bearing. With SSO2, the rear magnet is placed closer to the axis to provide even better stabilisation, precision and durability. |
Varying Angular Distance and Vortex Control NotchesThe NF-F12's stator guide vanes are set out in Varying Angular Distance and feature Vortex-Control Notches. Both measures help to spread the noise emission over a broader frequency spectrum and thus make the fan's sound pattern more agreeable to the human ear. |
Scope of Delivery
|
Integrated anti-vibration pads
Integrated anti-vibration pads made from extra-soft silicone minimise the transmission of minute vibrations while maintaining full compatibility with all standard screws and other mounting systems.
|
|
|
|
|
|---|---|---|---|---|
| NF-F12 PWM | NF-F12 5V PWM | NF-F12 5V | NF-F12 PWM chromax.black.swap | |
| Connector | 4-pin PWM | 4-pin PWM | 3-pin | 4-pin PWM |
| RPM | Max: 1500 / Min: 300 | Max: 1500 / Min: 300 | 1500 | Max: 1500 / Min: 300 |
| RPM with L.N.A. | 1200 | - | - | - |
| Acoustical Noise | 22,4 dB(A) | 22,4 dB(A) | 22,4 dB(A) | 22,4 dB(A) |
| Acoustical Noise with L.N.A. | 18,6 dB(A) | - | - | - |
| Voltage | 12 V | 5 V | 5 V | 12 V |
| Size (mm) | 120x120x25 | 120x120x25 | 120x120x25 | 120x120x25 |
| Colour | Brown & Beige | Brown & Beige | Brown & Beige | Black with swappable coloured anti-vibration pads |
Customer reviews
Top reviews from United Kingdom
There was a problem filtering reviews right now. Please try again later.
Size 120x120x25 mm
Mounting hole spacing 105x105 mm
Connector 4-pin PWM
Bearing SSO2
Blade Geometry Heptaperf™
Frame Technology Focused Flow™
Rotational Speed (+/- 10%) 1500 RPM
Rotational Speed with L.N.A. (+/- 10%) 1200 RPM
Min. Rotational Speed (PWM, +/-20%) 300 RPM
Airflow 93,4 m³/h
Airflow with L.N.A. 74,3 m³/h
Acoustical Noise 22,4 dB(A)
Acoustical Noise with L.N.A. 18,6 dB(A)
Static Pressure 2,61 mm H₂O
Static Pressure with L.N.A. 1,83 mm H₂O
Max. Input Power 0,6 W
Max. Input Current 0,05 A
Voltage 12 V
MTTF > 150.000 h
Scope of delivery
Low-Noise Adapter (L.N.A.)
4-Pin Y-Cable
30cm Extension Cable
4 Vibration-Compensators
4 Fan Screws
PERFECT for radiators, CPU heatsinks and for front intake next to HDD bays if your not running a raid 10 array of m.2 or SATA 3 1Gb SSD's Bit noisy for me as its at full rpm as I think I made a boo boo but temps came down 20 degrees celcius so I did something better than before
Highly recommend you lookup noctua airflow/recommendation chart before buying. They have 3 specific fans: one for radiators (high pressure, this one), one for airflow (high airflow) and an all rounder. Get the fans you need for your purpose for best result.
It's worth noting that I use mine as a CPU heatsink fan. In my opinion, the similar Noctua NF-S12A is the marginally better choice as a case fan. It's the same price at this moment in time: Noctua NF-S12A PWM Case Fan 120 mm . The S12A is even quieter than this one, and slightly better at shifting large volumes of air. Whereas the F12 is better at generating static pressure, which is what you would want from a CPU cooler fan. An internet search for 'noctua which fan is right for me?' will take you to Noctua's website with much more detailed information...
But the subtlety above aside, if you're looking for quality, you've probably found the right choice.
There was NO Y-split cable in the box though. This is advertised as coming with one, even the box itself says one should be included, but no. This did not come with one.
I have bought this as an extra for my NH-D15S CPU cooler, and NEED a Y-Cable. So, I've had to spend more money on a 3rd party cable.
This would have been an easy 5/5 rating, but leaving out an extremely important, and advertised as coming with accessory has dropped this to a 4/5.
Don't rely on the advertised description. If you need a Y-Cable, buy your own just in-case.
Fan is ultra quiet, running on quality bearings, no signs heat build up whatsoever, i have to look at the switch to check that it's on, otherwise you wouldn't know, yes i could have bought one for half the price but noctua make quality products, i leave this on for 6 plus hours after the event, it draws virtually no power that is noticeable on my leisure battery & i am confident in years of trouble free use.
They're whisper-quiet, the engineering quality is amazing and so is the longevity - I've never had one fail, even after >5 years regular usage and despite looking pretty grubby.
The packaging is probably the best I've seen for any product and the included accessories cover silent rubber or screw mounting, an extension cable, and a speed reduction cable (which reduces the minimal noise still further).
Highly recommended.
I am not a blogger to review things, but some good products deserve its feedback.
I have sent 2 fans back bought on Ebay, and as no longer wished to waste time, invested in good brand.
It pays off for now, NF12 PWM is incredibly quiet and together with my 14inch front fan is a whisper quiet solution I should have invested long time ago.
Now my eyes is after PSU to suit this couple of spinners...
Seasonic 500-600 passive is my direction if this would not disappoint me. As somehow I have a filling this got over-marketised in recent years, driving price tag UP from £89 3yrs back to over £150 now. (But that's different story)
