This has the potential to be a great little 'scope for the less demanding user or beginner. Its straight forward to use, covers all the range most users will ever need and has the added function generator and protocol decoder.
Unfortunately, as of May 2021 there's a lot of software issues need to be fixed before its a stable device to use. Regularly it will lock up when pressing the Auto set button or even just out of the blue. The latest firmware update helped a little and with any luck there'll be updates to fix these problems.
Myself I'd hold on a few months and see if these problems do get sorted before buying.
Voucher: Voucher valid until Tuesday, 16 November 2021 or while stocks last.
Get promo codes
Find out all personalised promo codes that you are eligible for. Click here.
More items to explore
Page 1 of 1 Start overPage 1 of 1
More to consider from our brands
Page 1 of 1 Start overPage 1 of 1
Compare with similar items
Product Description

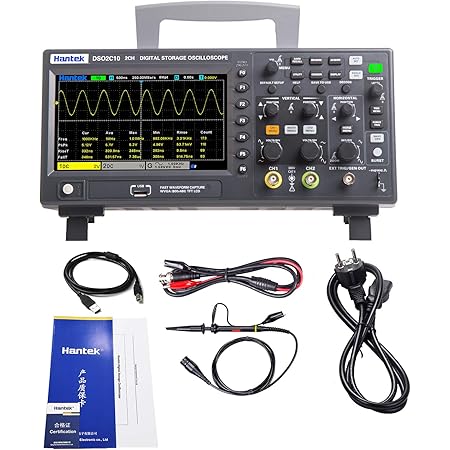

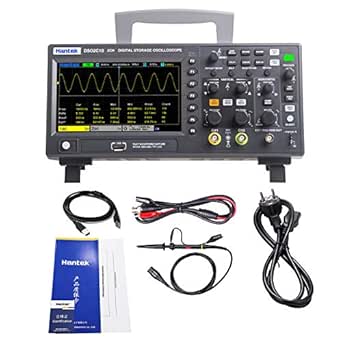

Hantek DSO2000 Series Digital Oscilloscope 2CH 1GSa/S Storage Oscilloscope 100/150MHZ Bandwidth Handheld
Hantek new cost-effective oscilloscope, 100/150MHz Bandwidth, 1GSa/s, 8M memory depth; with 1CH 25MHz waveform generator(only 2D10, 2D15), support arbitrary waveform output; 14 kinds of trigger modes, standard with 5 kinds of serial protocol triggers and decodes; 32 kinds of auto measurements with statistics; 3-digit digital voltage meter and 6-digit hardware frequency indicator functions; 2 sets of DVM; Abundant SCPI remote command control. It is a useful commissioning instrument for various fields such as communication, aerospace, national defense, embedded systems, computers, research and education.
|
|
|
|
|---|---|---|
|
|
|
|
Specification:
Model: DSO2C10
Channel: 2CH
Bandwidth: 100 MHz
Sample Rate:Sample Rate:1GSa/S(single channel), 500MSa/s(two channels)
Memory Depth: 8M
AFG: NO
Average: Average waveform, times: 4,8,16,32,64,128
High resolution: Up to 12bit
lnput coupling: DC, AC, GND
Input impedance: 1MQ+2%ll20pF+3pF Probe
attenuation factor 1×,10X.100X.1000X
Voltage classes: 300V CAT II
Maximum input voltage: 30OVRMS (10X)
Package includes:
1* Oscilloscope
1* USB Data Cable
1* Clip line
1* Power Cable
- 2 channels, both are respectively controlled by independent knobes;
- Vertical range 2mV/div ~ 10V/div
- Vertical resolution : 8bit
- CAN decode and protocol analysis: RS232/UART、I2C、SPI、CAN、LIN
- Can save as multiple data formats, such as setting, waveform, referance waveform, CSV, picture
- 5 bits digital voltage meter and 6 bits hardware frequency indicator function
- 2 sets of digital voltmeter
- Support threshold testing, free measurements within the screen
|
|
|
|
|---|---|---|
|
|
|
|
Customers who bought this item also bought
Page 1 of 1 Start overPage 1 of 1
Customer Questions & Answers
Customer reviews
Top reviews from United Kingdom
There was a problem filtering reviews right now. Please try again later.
Reviewed in the United Kingdom on 24 May 2021
Colour Name: DSO2D15Verified Purchase
Reviewed in the United Kingdom on 7 October 2021
Colour Name: DSO2D10Verified Purchase
Reviewed in the United Kingdom on 1 June 2021
Colour Name: DSO2C10Verified Purchase
