| Brand | Corsair |
|---|---|
| Product Dimensions | 52.07 x 20.57 x 50.8 cm; 7.53 Kilograms |
| Item model number | CC-9011012-WW |
| Manufacturer | Corsair |
| Series | CC-9011012-WW |
| Color | Black |
| Form Factor | ATX, Mini-ATX |
| Number of Firewire Ports | 1 |
| Wattage | 51.00 |
| Are Batteries Included | No |
| Item Weight | 7.53 kg |

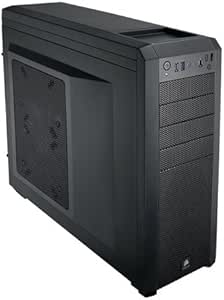

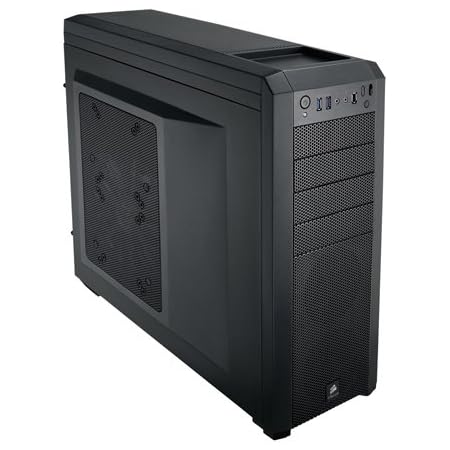

Corsair CC-9011012-WW Carbide Series 500R Windowed Mid-Tower ATX Performance Computer Case - Black
We don't know when or if this item will be back in stock.
| Brand | Corsair |
| Colour | Black |
| Cooling method | Air |
| Fan size | 120 Millimetres |
| Item weight | 16.6 Pounds |
| Item dimensions L x W x H | 52.1 x 20.6 x 50.8 centimetres |
| Case type | Mid Tower |
| Total internal bays | 6 |
| Fan count | 2 |
| Total USB ports | 2 |
About this item
- Make sure this fits by entering your model number.
- Optimize airflow and keep your system neat and tidy using the intelligent cable management system
- Removable hard drive cages for optimum GPU airflow and to accommodate GPUs up to 452 mm in length
- Mesh side panel can accommodate two 120 mm or 140 mm fans, or included 200 mm fan for outrageous cooling potential
- Front panel includes USB 3.0, headphone, mic, multi-channel fan controller and an LED on/off switch
- Optimize airflow and keep your system neat and tidy using the intelligent cable management system
Featured items you may like
Customers who viewed this item also viewed
Have a question?
Find answers in product info, Q&As, reviews
Your question may be answered by sellers, manufacturers or customers who bought this product.
Please make sure that you've entered a valid question. You can edit your question or post anyway.
Please enter a question.
Compare with similar items
Product information
Colour Name:Black | Style Name:500RTechnical Details
Additional Information
| ASIN | B005E983JW |
|---|---|
| Customer Reviews |
4.5 out of 5 stars |
| Date First Available | 2 Sept. 2011 |
Warranty & Support
Feedback
From the manufacturer
Serious Airflow Has Never Looked This Good
The Carbide Series 500R has outrageous cooling flexibility: there's a 200mm fan mounted on the side panel’s mesh screen for extra GPU cooling, a multi-channel fan controller, and removable and relocateable hard drive cages. The ability to move and remove hard drive cages not only improves airflow — it also allows you to instal graphics cards of up to 452mm in length.
Future-Ready
Support for USB 3.0 and 2.5” SSDs is built-in. Two USB 3.0 connectors are provided on the front panel and connect directly to motherboards with compatible USB 3.0 headers. Integrated SSD support lets you instal 2.5” solid-state drives in any of the hard drive bays, without having to deal with adapters.
Easy Access
Thumb screws on the side panels and tool-free drive instalation mean that you’ll spend less quality time with your screwdriver, and the integrated dust filters can be quickly removed for easy maintenance.
Looking Good, Inside and Out
The beauty on the inside goes beyond the black-painted interior. Corsair’s innovative cable management system provides a straightforward way to route cables behind the motherboard, not across it where it can interfere with airflow and give your system a cluttered look. And since looks are an important part of any build, you’ll appreciate the ability to turn the front panel fan white LEDs on or off with the push of a button.
About Carbide Series PC Cases
Corsair Carbide Series mid-tower PC cases have the high-end features you need, and nothing you don’t. Designed to be the foundation of awesome yet approachable gaming PCs, they combine the latest technology and ergonomic innovations with lots of room to build and expand, and amazing cooling potential.
Customer reviews
Top reviews from United Kingdom
There was a problem filtering reviews right now. Please try again later.
Fan filters - yes it does have fan filters, but only on the front and bottom. This isn't too much of an issue for me because I have the side fan facing away from the dusty parts of my room, but it's worth noting. The bottom fan filter slides out so you can install a 120/140mm fan, but I can't because my PSU is quite long and covers some of the mounting holes. If you turn your PSU upside down as I did so that the intake fan points downwards, that's covered by the dust filter as well.
As for cooling, there's a total of ten fan mounts as listed, if you remove the 200mm side fan which I haven't just yet. Otherwise there are eight total. I, however, removed the top hard drive cage to improve airflow through there, and bought a Corsair SP120 fan to stick to the bottom hard drive cage in a push/pull type thing and also attached two Corsair AF140 Quiet Edition fans to the top of the case to act as exhausts. This means I have all 7 total fan mounts filled. The airflow is good when you manage the cables properly behind the motherboard. It was a bit of a squeeze for me because I'm terrible at managing cables, but there's enough room behind the motherboard tray for every cable you could ever fit in a case this size.
I can't speak much for ease of build. I imagine for a veteran it's a cakewalk to build in something as spacious as this, but I kept screwing up and had to remove the motherboard three times to fit new cables in or suchlike. I may even have to do it again to attach the wifi card to my motherboard. But what I will say is that this case is very forgiving for even a clumsy fool like myself, and it made it much less arduous than some cases I could mention (but won't). So overall I enjoyed building into it - you can get your hands around it and pick up dropped screws and so on, so no problems there other than ones I caused myself.
In my opinion, this chassis looks better than it's supposed better, the Graphite 600T. It's imposing and angular, but not ugly. The paint is solid and only scratched off where I attached my anti-static wristband, while a screwdriver barely scraped it. Most importantly it comes with a fan LED switch. A lot of cases seem to forgo this for some reason, but the 500R has one and I'm eternally grateful for it. During the day, the white light looks great but at night it gets a little bright and obtrusive and it's great to have the option to switch it off. The fan controller is a bit basic, only wiring up to the front and side fans by default, and I just leave it on maximum because they're quiet enough at that setting.
So basically, a forgiving first-timer's case with good cooling, cable routing and more than enough space for two, perhaps three large graphics cards, native SSD support (so no need to go out and buy an adapter), removable hard drive cages and a switch to turn off the LEDs if they get annoying (which they might in the dark) all in a <£100 case. You'll probably need to buy some extra fans if you're going the overclocking/heavy use route, but I guarantee you won't mind because the case you're putting them is of such great quality.
As for the more practical side of things, Cable management is a tad more difficult than it should be, but nothing that's overly annoying to make a fuss out of. The clip at the top where you pull the cover for the fans off(although I know this is more down to me being sloppy) is a little flimsy, you really have to be careful when you pop the top off, I broke mine and the cover sort of just sits there now.
There is loads of space inside, and I mean LOADS, not just for a graphics card but for hardrives, disc player, whatever you want to put in the front of it, there's room for it.
The case comes with a fan controller with three options to go at a fast speed, low, or medium, and there's minimal noise from the fans.
There is a dust filter on the bottom, it's brilliant.
And just one last thing, the tray at the top, the plastic(whatever type of plastic they used I have no idea) is extremely hard to keep clean, dust will stick to it and for the love of God do not let your sister put their cup of tea in it, it's difficult to get rid of the ring.
This is a solid, fairly heavy-duty case with some good cable routing options. This houses my first built PC so I don't have anything to compare it to, but I am overall very happy with my purchase.
It's a bit ugly, like most PC cases, it could be cleaner looking.
It's heavy as hell. Probably want to avoid this if you'll regularly be going LAN parties/your friends although one plus for this purpose is that it has a handle on the top.
The lights are bad in my opinion. I didn't even know it had them when I bought it but they're never on. They're a cold blue / white.
The hard drive LED is bright and really annoying if you're trying to sleep with your PC on. Might want to replace it with a dimmer one. Though I have no idea how complicated this could be it's probably best done before you build your PC.
But that's the only cons I can think of. They're just lights.
As a case, this is a 3.5/5.
