here r the full specs
CPU Socket Intel Socket:
LGA 2011-3* / 2011* / 1366 / 1156 / 1155 / 1151 / 1150 / 775
AMD Socket:
FM2+ / FM2 / FM1 / AM3+ / AM3 / AM2+ / AM2
CPU Support Intel:
Core™ i7 Extreme / Core™ i7 / Core™ i5 / Core™ i3 / Core™2 Extreme / Core™2 Quad / Core™2 Duo / Pentium / Celeron
AMD:
FX-Series / A-Series / Phenom™ II X4 / Phenom™ II X3 / Phenom™ II X2 / Phenom™ X4 / Phenom™ X3 / Athlon™ II X4 / Athlon™ II X3 / Athlon™ II X2 / Athlon™ X2 / Athlon™ / Sempron™
Dimension 120 x 80 x 159 mm (4.7 x 3.1 x 6.3 in)
Heat Sink Dimensions 116 x 51 x 159 mm (4.6 x 2.0 x 6.3 in)
Heat Sink Material 4 Direct Contact Heat Pipes / Aluminum Fins
Heat Sink Weight 465g (1.03 lb)
Heat Pipes Dimensions ø6mm
Fan Dimension 120 x 120 x 25 mm (4.7 x 4.7 x 1 in)
Fan Speed 600 – 2,000 RPM (PWM) ± 10%
600 – 1,600 RPM (PWM) ± 10% (EU Version)
Fan Airflow 24.9 – 82.9 CFM ± 10%
24.9 – 66.3 CFM ± 10% (EU Version)
Fan Air Pressure 0.3 – 2.7mm H2O ± 10%
0.3 – 1.7mm H2O ± 10% (EU Version)
Fan Life Expectancy 40,000 hrs
Fan Noise Level (dB-A) 9 - 36 dBA
9 - 31 dBA (EU Version)
Bearing Type Long Life Sleeve Bearing
Connector 4-Pin
Fan Rated Voltage 12 VDC
Fan Rated Current 0.22A
0.19A (EU Version)
Power Consumption 2.64W
2.28W (EU Version)
Fan Weight 104g (0.23 lb)
EAN / UPC Code RR-212E-20PK-R1: 4719512032701 / 884102012921
RR-212E-20PK-R2: 4719512035054 / 884102012921
RR-212E-16PK-R1(EU Version): 4719512032701 / 884102012921
Free delivery on your first order
Select the 'Free delivery on first order' option at checkout. See conditions.
More items to explore
Page 1 of 1 Start overPage 1 of 1
Compare with similar items
|
Arctic MX-4 (4 Grams) - Thermal Compound Paste, Carbon Based High Performance, Heatsink Paste, Thermal Compound CPU for All Coolers, Thermal Interface Material
|
Arctic Silver 5 Thermal Compound 3.5g Tube
|
Vetroo V5 CPU Cooler - 5 Direct Contact Heat Pipes - 120mm PWM Fans - Addressable RGB Light - Intel/AMD Socket Support (Black)
|
Noctua NT-H1 3.5g, Pro-Grade Thermal Compound Paste (3.5g)
|
Cooler Master Hyper TX3i CPU Cooling System - Compact and Efficient, 3 Direct Contact Heat Pipes, 92mm PWM Fan
|
|
|---|---|---|---|---|---|---|
| Customer Rating | (5536) | (34845) | (2031) | (92) | (12639) | (4232) |
| Price | £28.80 | £5.50 | £5.99 | £31.59 | £7.99 | £21.95 |
| Sold By | Scan Computers Intl Ltd | BisLinks® | Shiny Hardware Limited | CozyUK | NOCTUA - Designed in Austria | Amazon.co.uk |
| Item Dimensions | 12 x 8 x 15.9 cm | 1.5 x 7.9 x 18.7 cm | 21.59 x 6.35 x 15.24 cm | 12.8 x 0.01 x 14.8 cm | 21.59 x 15.24 x 1.27 cm | 7.9 x 9 x 13.6 cm |
From the manufacturer
Building a PC is a highly personalized journey. We know that components are carefully chosen based on performance, functionality, and aesthetic preference. Your personality is embedded in each of those choices, transcending from hardware to an immersive, custom-built experience. From custom PCs to all-out gaming rooms, we encourage every decision to reflect who you are.

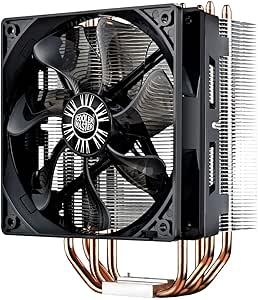

Cooler Master Hyper 212 EVO CPU Cooling System
- THERMAL PERFORMANCE - the Hyper 212 EVO delivers reliability, value, and undisputed cooling performance.
- CONTINUOUS DIRECT COOLING - The primary heat exchanger features 4 embedded copper heat pipes (Ø6mm) in a densely packed flat array for superior thermal conductivity.
- ALUMINIUM FIN HEAT SINK - Optimised to perform at high and low fan speeds (600-1600 RPM).
- 120MM PMW FAN - Wave-shaped blades ensure excellent air-flow (24.9-66.3 CFM). Can be easily configured into a dual push-pull system with a secondary fan (not included).
- AMD & INTEL COMPATABLE - Includes versatile all-in-one mounting brackets that support Intel and AMD sockets
A Proud Legacy
With a proud legacy of demonstrably superior performance spanning all the way back to the original in 2007, Hyper 212 Cooling Systems have imitated by everyone, yet matched by no one.
|
|
|
|
|---|---|---|
Continuous Direct ContactPrecision machining ensures a continuous flat uniform surface for the copper vapour chamber array. This enables 6% additional contact surface area uninterrupted by aluminium spacing, resulting in 5% greater cooling efficiency. |
120MM PMW Fan (Dual Fan Optional)The 120 mm PMW fan is fitted with anti-vibration rubber pads and a quick-snap cover for easy installation. Long Life Sleeve Bearing: 0.3 ~ 1.7 mmH₂O, 600 ~ 1600 RPM ± 10%, 24.9 ~ 66.3 CFM ± 10%, 40,000 hours |
AMD & Intel Socket CompatibleUniversal mounting supports multiple sockets:
|
|
|
|
|
|---|---|---|---|
| Hyper TX3 EVO | Hyper H412R | Hyper 212 EVO | |
| Size | Compact | Compact | Standard |
| Heatsink Dimensions | 90 x 51 x 136 mm | 90 x 63.5 x 136 mm | 120 x 80 x 159 mm |
| Heat Exchanger | Direct Contact | Direct Contact | Continuous Direct Contact |
| Heatpipes | 3 x Ø6 mm | 4 x Ø6 mm | 4 x Ø6 mm |
| Fan Dimensions | 92 x 92 x 25 mm | 92 x 92 x 25mm | 120 x 120 x 25 mm |
| Noise | 17 ~ 30 dBA | 29.4 dBA (Max.) | 9 ~ 31 dBA |
| RPM | 800 ~ 2200 RPM | 600 ~ 2000 RPM | 600 ~ 1600 RPM |
| Airflow | 43.1 CFM | 34.1 CFM | 66.3 CFM |
Deals related to this item
Page 1 of 1 Start overPage 1 of 1
Customer Questions & Answers
Customer reviews
Top reviews from United Kingdom
There was a problem filtering reviews right now. Please try again later.
Reviewed in the United Kingdom on 10 May 2016
Style Name: Hyper 212 EVOVerified Purchase
Reviewed in the United Kingdom on 4 July 2017
Style Name: Hyper 212 EVOVerified Purchase
Reviewed in the United Kingdom on 1 March 2016
Getting any information on whether it would fit my motherboard( Asus Sabertooth X58) was a bit hard since the Board is over 5 years old(ancient in computer terms)
Encoding a Blu-Ray To Apple TV 3 Preset in Handbrake my Cpu with the Intel Cooler would Basically Hit 96-98c (100 is the Shutdown) Very worrying and it sounded like a 747 Taking off
On to the 212 Evo Encoded a Blu Ray to Apple TV 3 Preset in Handbrake last night with the cooler installed, Never went over 58c and I couldnt hear the Fan at all.
I would say the Fan was extremely Easy to fit , I didn't need to take the Motherboard out of the case (NZXT Phantom full tower) just put the backing plate onto the motherboard, get my Girlfriend to put through the correct screws, tighten them up with the supplied nuts.
Then put some thermal paste onto the cpu (i used the supplied stuff) adjust the mounting strut to 1366(my cpu type) mount the cooler(after removing the plastic underneath) then fit the strut tighten her up using a star pattern.
That was it basically took me 10 minutes to install and no swearing in the process.
Job done and extremely pleased with the results
oh before i forget no problem with space around my cpu,
My Specs are
Asus X58 Sabertooth TUF Intel X58 (Socket 1366) DDR3 Motherboard
Intel Core i7 980X 3.33GHz (Gulftown) Extreme Edition (Socket LGA1366)
OCZ Gold Low Voltage 6GB (3x2GB) DDR3 PC3-16000C10 2000MHz Triple Channel
NZXT Phantom Enthusiast Full Tower Case
Style Name: Hyper 212 EVOVerified Purchase
Brilliant Cooler Easy Install
By J B Harding on 1 March 2016
I have a 5 year old Intel I7 980X Extreme processor it was the first Hex core cpu you could get and it cost me nearly £700 i seem to remember, Fantastic cpu, but alas as time has gone on the Intel Cpu fan that came with it has sounded louder and louder, so after much research I decided to chance one of theseBy J B Harding on 1 March 2016
Getting any information on whether it would fit my motherboard( Asus Sabertooth X58) was a bit hard since the Board is over 5 years old(ancient in computer terms)
Encoding a Blu-Ray To Apple TV 3 Preset in Handbrake my Cpu with the Intel Cooler would Basically Hit 96-98c (100 is the Shutdown) Very worrying and it sounded like a 747 Taking off
On to the 212 Evo Encoded a Blu Ray to Apple TV 3 Preset in Handbrake last night with the cooler installed, Never went over 58c and I couldnt hear the Fan at all.
I would say the Fan was extremely Easy to fit , I didn't need to take the Motherboard out of the case (NZXT Phantom full tower) just put the backing plate onto the motherboard, get my Girlfriend to put through the correct screws, tighten them up with the supplied nuts.
Then put some thermal paste onto the cpu (i used the supplied stuff) adjust the mounting strut to 1366(my cpu type) mount the cooler(after removing the plastic underneath) then fit the strut tighten her up using a star pattern.
That was it basically took me 10 minutes to install and no swearing in the process.
Job done and extremely pleased with the results
oh before i forget no problem with space around my cpu,
My Specs are
Asus X58 Sabertooth TUF Intel X58 (Socket 1366) DDR3 Motherboard
Intel Core i7 980X 3.33GHz (Gulftown) Extreme Edition (Socket LGA1366)
OCZ Gold Low Voltage 6GB (3x2GB) DDR3 PC3-16000C10 2000MHz Triple Channel
NZXT Phantom Enthusiast Full Tower Case
