| Brand | Bipra |
|---|---|
| Product Dimensions | 5.4 x 4.5 x 1.3 cm; 60 Grams |
| Manufacturer | Bipra Limited |
| Are Batteries Included | No |
| Item Weight | 60 g |

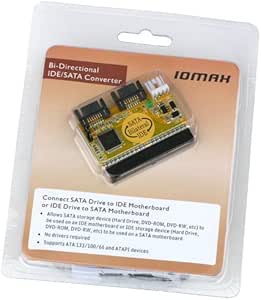

Bipra Bi-Directional IDE/SATA Converter (Connect IDE Drive to SATA Motherboard or SATA Drive to IDE Motherboard)
We don't know when or if this item will be back in stock.
- Make sure this fits by entering your model number.
- Allows SATA storage device (Hard Drive, DVD-ROM, DVD-RW, etc.) to be used on an IDE motherboard or IDE storage device (Hard Drive, DVD-ROM, DVD-RW, etc.) to be used on a SATA motherboard
- No drivers required
- Supports ATA 133/100/66 and ATAPI devices
- Compliant with Serial ATA 1.0 Specification
- Supports SATA I and SATA II
Exclusive items from our brands
Customers also viewed these products
Customers who bought this item also bought
Product information
Technical Details
Additional Information
| ASIN | B00279MSBG |
|---|---|
| Customer Reviews |
4.1 out of 5 stars |
| Best Sellers Rank | 116,014 in Computers & Accessories (See Top 100 in Computers & Accessories) 2,644 in Adapters |
| Date First Available | 22 April 2009 |
Warranty & Support
Feedback
Product description
Specifications & Features
- Allows SATA storage device (Hard Drive, DVD-ROM, DVD-RW, etc.) to be used on an IDE motherboard or IDE storage device (Hard Drive, DVD-ROM, DVD-RW, etc.) to be used on a SATA motherboard
- No drivers required
- 40 pin IDE Female connector
- 7 pin SATA Male connector
- LP4 (Male) to SP4 (Female) power cable
- Supports ATA 133/100/66 and ATAPI devices
- Compliant with Serial ATA 1.0 Specification
Package Contents
- Bi-Directional IDE / SATA Converter
- SATA Data Cable
- Power Cable (to power the converter)
- User Manual
Please Note:
Connect SATA drive to IDE motherboard
If you do not have a power supply that provides you with a SATA power cable, then you will need to purchase a SATA power cable.
Connect IDE drive to SATA motherboard
If you do not have a power supply that provides you with Molex power cables, then you will need to purchase SATA to Molex Power Adapters.
Customer reviews
Top reviews from United Kingdom
There was a problem filtering reviews right now. Please try again later.
Thats about it, it works and allows you to use the now older IDE interface devices onto a SATA interface, slower but effective.
On my old motherboard (Gigabyte with an Intel P35 chipset, SATA & one IDE port) I tried a converter (a different brand but looking exactly like the StarTech Bi-Directional SATA IDE Adapter Converter ) just to see if I could get my Ram writer working on a SATA port. Worked like a dream!
Tried this converter on my new all-SATA motherboard (Gigabyte GA-Z77X-UD3H with, of course, a Z77 chipset) but, alas, it didn't do a thing on this board! I tried different SATA cables & ports, but, still, nothing. Desperate, I ordered two other converters (this one, and a Konig 58 x 25mm IDE to SATA Converter Expansion Card ), but although these two might've worked for others, they certainly didn't work for me! Again, I changed SATA cables & ports, but nothing happened. In 95% of the tests, I couldn't even boot my computer until I disconnected the SATA cable from the DVD drive. In the few other times that I could boot up, my DVD wasn't recognized.
Maybe things would've turned out better if the last two converters had instructions, but they didn't. However, since my first converter did have instructions, I knew pretty much how to install an IDE to SATA converter.
It is quite well made, comes with a power connector - converter board to molex and a short sata cable.
One thing to be aware of is the size of the converter board, no problem when installed in a larger case but might be a problem in a small case or with certain connector layouts on smaller or crowded motherboards. The converter is about the size of a matchbox, but thinner.
one side of the connector has an ide plug, the other side has two sata connectors, which one you use depends on what way round you are 'converting', and a jumper for master/slave selection. That's it, very easy to install.
All in all a good bit of kit, cheaper than throwing away a drive when upgrading to a new motherboard which has only one ide connector.
It is important to check which of two identical connectors takes the SATA lead.
If your computer does not have Molex connectors on its power supply, you will need a SATA 15pin (male) to Molex 4pin (female) power adaptor for the IDE drive.
You need to check that the 'jumper' is correctly set for a main or slave IDE drive.
The circuit board sticks out several cm from the back of the drive and is only supported by the IDE connector, so be careful not to put any strain on the SATA and power leads along the outboard edge.
Once all these points were covered, the device worked ok and the drive appeared on my Windows PC.
have the hole already.
Because this drive was recovered from a non-PC environment, when connected up in the PC it was recognised by the BIOS but not by Windows as an extra drive. However, the FAQ of the instruction leaflet covers this eventuality and points you to the hard drive management menus of Windows where you can effect a quick format which will enable the drive to be used in the Windows environment. Obviously, you should be very careful if you have to do this to ensure that you format your new drive and not the existing one! (You should never do anything like this without having backed up your data previously).
Delighted with this product; arrived very quickly and provided useful storage space very cheaply.My only note of caution is that you do need to be reasonably familiar with the inside of your PC to do this sort of thing -if this is not the case then you would be well advised to get someone who is, to do it for you: it's a very straightforward job for those who are PC-savvy.
