Proster Multimeter 6000 Counts TRUE RMS Autoranging Multi Meter AC DC Current Voltage Tester Amp Ohm Volt Meter Capacitance Test Temperature Measurement Continuity Multimeter Tester with Storage Bag
We don't know when or if this item will be back in stock.
| Brand | Proster |
| Power source | Battery Powered |
| Style | Modern |
| Colour | Black, Orange |
| Item weight | 590 Grams |
About this item
- 【Proster Digital Multimeter】This TRUE RMS Multimeter Support Accurate Measurement of AC/DC Voltage Current, Resistance, Capacitance, Frequency, Temperature, Diode, Continuity Testing and NCV Detection. The Multimeter is Designed for Laboratories, Factories, Radio Technology and Homes.
- 【6000 counts Auto-Ranging Multimeter】The 6000 5/6 Digital LCD Backlight Display Multimeter Tester Support Auto/Manual Range and Max/Min Value Measuring.
- 【Safety and Precision】Low Battery Voltage Indication, Overload Protection On All Ranges, Data Hold Function, All These Special Features Provides You Secure And Convenient Testing. Capacitance Measurement Range Is Upgraded To 60mF And Frequency Range Is Reduced By 10MHz To Improve Accuracy.
- 【Protective Rubber Sleeve & Stand】Provide Protection Against Knocks And Bumps; Built-In Support Stand For Hand Free Use; Test Probes Slot To Place And Keep The Test Probes.
- 【Test Leads & Multimeter Carry Bag】Includes Battery , A Pair Of Test Leads & K-Type Temperature Probe, A Carry Bag For Portable Multimeters Carry And Keep.
Products related to this item
Products related to this item
Looking for specific info?
Customer reviews
Customer Reviews, including Product Star Ratings, help customers to learn more about the product and decide whether it is the right product for them.
To calculate the overall star rating and percentage breakdown by star, we don’t use a simple average. Instead, our system considers things like how recent a review is and if the reviewer bought the item on Amazon. It also analyses reviews to verify trustworthiness.
Learn more how customers reviews work on AmazonCustomers say
Customers like the functionality, value for money, and build quality of the electric circuit testing device. They mention it has more functions than their last product, is well-made, and reliable. Some are satisfied with its ease of use, looks, and range. However, some customers have mixed opinions on readability.
AI-generated from the text of customer reviews
Customers are satisfied with the functionality of the electric circuit testing device. They mention it works well, is easy to use, and has more functions than their last product. The added temperature and transistor test functions are very good. The auto range works very well, and it has other useful features such as reading hold. It's a good entry-level piece of equipment and good enough for general hobby bench use.
"...update, 03-2024, I have now had this for 9 years (2015) and still working well, no regrets." Read more
"...It has other useful features such as reading hold, so you can freeze the reading at times when it is difficult to probe and read the meter at the..." Read more
"...Does what is says so no serious complaints.good for general DIY use but not pro use" Read more
"...Whilst I've not been able to check the accuracy so far everything has worked perfectly...." Read more
Customers appreciate the value of the product. They mention it's handy for electronics work and has decent quality overall for the money.
"This is a fantastic multimeter for the price...." Read more
"...Good value home use meter but not pro level. Does what is says so no serious complaints.good for general DIY use but not pro use" Read more
"...the accuracy is OK and it proves to be long lasting, excellent value for money." Read more
"Have not had this unit long, but initial opinion is that is remarkable value and provides a wide range of functionality...." Read more
Customers like the build quality of the electric circuit testing device. They mention it's well-made, sturdy, and reliable. The rubber housing makes it feel sturdy, and the case is substantial with extra padding on the corners. Customers also say the wires are good quality, and the leads feel substantial. However, some customers say the product is cheap, but you get what you pay for.
"...The probes and leads supplied were of good quality and are rated cat III @ 1000V. 20A. They fit firmly into the 4mm sockets with no slack and are..." Read more
"...Mechanically it seems robust, and the supplied leads are as good as any other multimeter I have used." Read more
"...Seems very robust in its easily removable rubber jacket. The fold down stand, pulled out from the back seems a bit flimsy...." Read more
"...Well made. Great price. Very pleased with this unit. And ability to sense 'live' mains within walls is a bonus." Read more
Customers like the accuracy of the electric circuit testing device. They say it's quite accurate when measured with absolute voltages and gives comparable readings to their Flukes at a fraction of the cost. Some say they're surprised at the quality and accuracy of the meter given the price.
"...I was quite surprised at the quality and accuracy of this meter given the price, and it has enough features to suit the requirements of virtually..." Read more
"...of my freezer, fridge and oven very conveniently, and is accurate to about one degree...." Read more
"I like the measuring is accurate. Specifically tested with low mA etc..." Read more
"...come loose somewhere (perhaps I stretched it), as it is failing continuity testing sometimes, so I'd probably recommend to buy them separately if..." Read more
Customers find the electric circuit testing device easy to use. They mention it's simple, accurate, and has informative and helpful instructions. Customers also appreciate the straightforward instrument with self-explanatory dial. They say it's well-built, has a clear display, and easy function selection.
"...The meter is extremely easy to use and the little instruction booklet is easy enough to follow and to the point...." Read more
"I bought this because it was value for money easy to use" Read more
"After a year of owning this product, its worked really well and is very easy to use...." Read more
"...on my electronically challenged 25 year old car and find it to be easy to use with a large clear display. I have only used it a few times so far...." Read more
Customers like the appearance of the electric circuit testing device. They mention it's a nice meter, feels solid, and has a nice kickstand. Some also say the best part is the display, which they can easily read through.
"...It is possible to zero the meter to take relative readings or to correct for lead resistance or capacitance...." Read more
"...The bright orange silicon type cover is reasonable and certainly easy to find in the clutter of my bench. The zip up bag I'm not so sure about...." Read more
"...I think the best part is the display, which I can easily read through the windscreen while lying under the sear pulling fuses!" Read more
"...Comes with OK probes and a nice leatherette case as well." Read more
Customers are satisfied with the range of the product. They mention it's a great multimeter, has all the ranges they would need, and is versatile. Some say it's a good auto-ranging meter that ranges well in V and I.
"...so that you can select a particular range manually, and has wide current ranges both DC and AC up to 20amps...." Read more
"...-range themselves quickly, and I particularly like the ability to pre-select the range - useful if one is doing a series of adjustments...." Read more
"...close for voltage, current, resistance and capacitance - perfect for measuring stuff at home...." Read more
"The Proster VC97 is a Very good multimeter in my opinion, I own lots of other more expensive brands of Multimeter but for the home enthusiast or..." Read more
Customers have mixed opinions about the readability of the electric circuit testing device. Some mention the display is clear and large, while others say it's slow at settling on a value and the autoranging function is very slow to stabilize.
"...The display characters are just short of an inch high and very clear...." Read more
"...Works well and probes are comfortable to use. Display is clear to read but turning on backlight requires fiddly long press on the hold button...." Read more
"...So slow that you will just crave a manual meter that lets you click the dial to the range you want...." Read more
"...this is to cater of for the large easy to use controls and big easy to read screen...." Read more
Reviews with images
Well specified and accurate.
-
Top reviews
Top reviews from United Kingdom
There was a problem filtering reviews right now. Please try again later.
The meter itself measures 7.5 inches x 3.5 inches and is 1.75 inches thick. The main switch has a positive feel about it and is easy to turn and locates well at each position. Being auto ranging you don't have to worry about selecting the correct range, it does that automatically and you can switch from AC to DC just by pressing the blue AC/DC button. This button also disables the default auto time off after 15 mins, if pressed at the same time as switching the meter on. The display characters are just short of an inch high and very clear. The probes and leads supplied were of good quality and are rated cat III @ 1000V. 20A. They fit firmly into the 4mm sockets with no slack and are of low resistance.
I did some basic tests on DC voltage using my lab power supply which has an accurate digital read out to two decimal places, the meter stabilizes quite quickly and the readings were within 0.01 (10 millivolts) of the set voltage on the power supply, repeatability was excellent each time. This test was carried out over the range of 1V to 29.99V (the max output of the Power supply)
AC voltage compared well with with my old Beckman meter, but generally this is less critical.
Next test was the capacitor test for this I used a close tolerance 2mfd motor capacitor, the reading obtained was 2.00mfd, spot on. Note, if testing large capacity electrolytics allow time for the cap to charge up fully for an accurate reading.
The frequency test confirmed the mains frequency as being exactly 50hz.
The ohms test, checking a high stability close tolerance 300 ohm resistor gave a reading of 301 ohms. An excellent result.
Temperature readings using the supplied probe in the steam from boiling water in a kettle gave a figure of 103deg C. within the published spec.
This meter can also check the duty cycle of pulse width modulation of square waves, has hold facility to lock the display on a reading, max min button, a range button so that you can select a particular range manually, and has wide current ranges both DC and AC up to 20amps. (Note, the meter is internally fused at 10 Amps on the 20Amp range and 0.5 Amps on the lower ranges, quick blow type.)
A transistor test is built in to check the hfe of both pnp & npn transistors, the wires just plug into the sockets provided. A bar graph is provided at the bottom of the scale, this gives a linear readout of the measurement akin to the old analogue meters with a pointer and is useful if you just want to know if a voltage is present without waiting for an exact figure to stabilise on the display.
I was quite surprised at the quality and accuracy of this meter given the price, and it has enough features to suit the requirements of virtually everybody who has the need for a test meter in their life.....

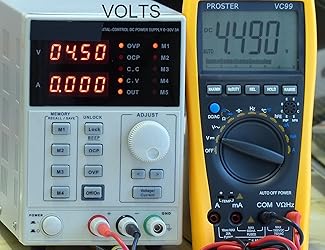

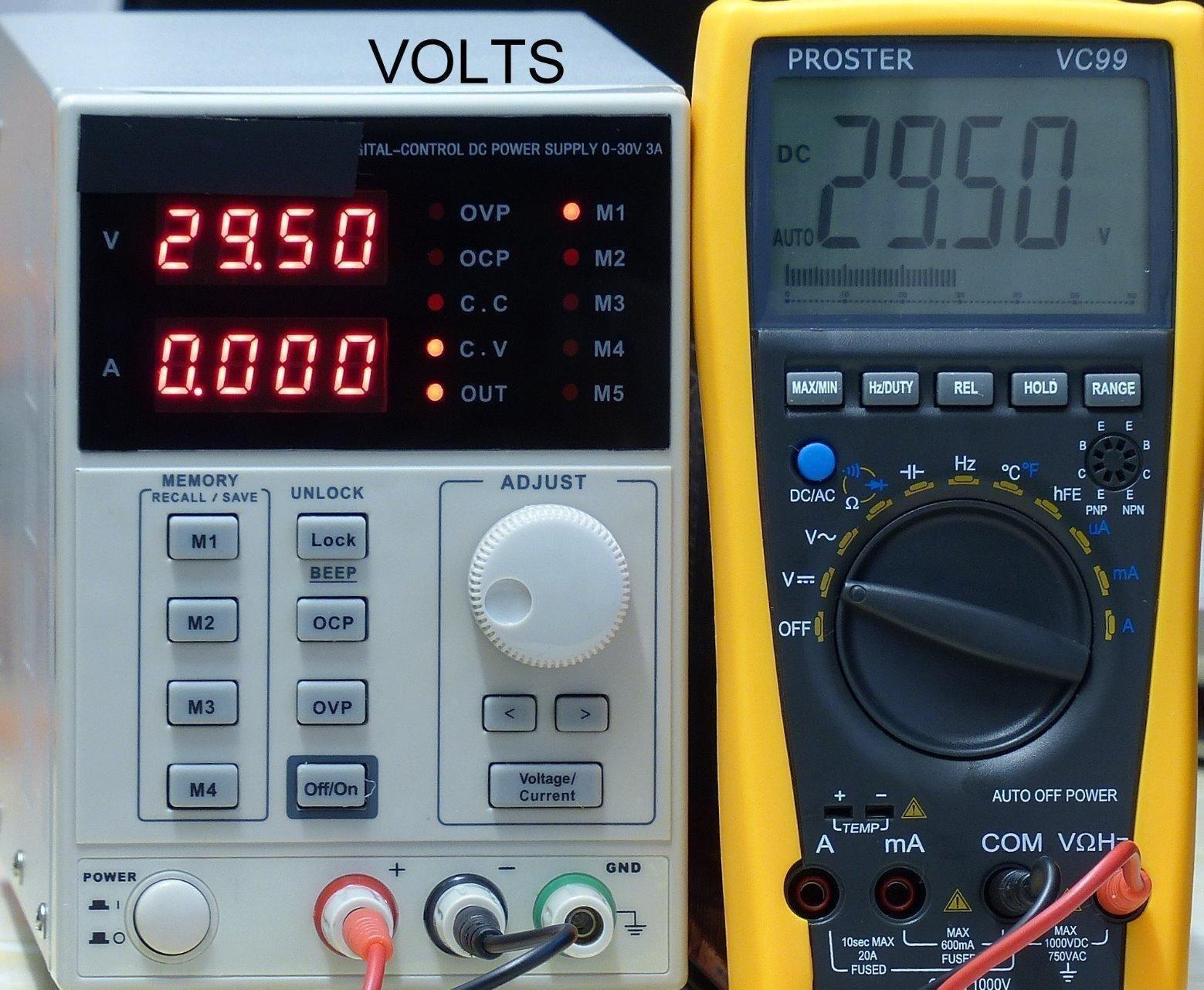

Pictures show actual readings obtained from my lab power supply, no 5 is capacitance range checking a 2 mfd capacitor, no 6 is on the ohms range testing a 300 ohm resistor of known accuracy (orange, black, brown) the results speak for themselves.
Update: There seems to be some misunderstanding and confusion among some users of digital multimeters as to what to expect and how they typically operate. This is compounded by the fact that many of these are of the auto ranging type which means that the meter automatically sets the range sensitivity for you and will always start at the most sensitive range which is the millivolt one. This is the reason why there are some complaints about the numbers continuously changing when switched on.
Digital meters have a high input impedance and very high sensitivity; this renders them susceptible to static voltage pickup from the test leads which act like aerials. These voltages are of a few millivlots only but sufficient to make the display continuously change, however this has no bearing on the final reading accuracy PROVIDING a good clean contact is made between the probe point and the test item, any dirt or tarnish on the test surface will result in varying readings. Make sure that the probe points penetrate through any such contamination to the clean metal underneath. It is not necessary for the display to be at zero before taking a reading with a digital meter (unlike an analogue meter which must be zeroed first) it simply reads what is there, it does not add the initial display reading to the actual voltage reading. Shorting the probes together will eliminate the static problem momentarily, and you will see the display count down to zero, but it is not necessary to wait for this before taking a reading. More expensive meters will count down more quickly to zero but in real life situations this is of no consequence and adds to the initial cost of the meter.
Latest update, 03-2024, I have now had this for 9 years (2015) and still working well, no regrets.
Reviewed in the United Kingdom on 11 December 2015
The meter itself measures 7.5 inches x 3.5 inches and is 1.75 inches thick. The main switch has a positive feel about it and is easy to turn and locates well at each position. Being auto ranging you don't have to worry about selecting the correct range, it does that automatically and you can switch from AC to DC just by pressing the blue AC/DC button. This button also disables the default auto time off after 15 mins, if pressed at the same time as switching the meter on. The display characters are just short of an inch high and very clear. The probes and leads supplied were of good quality and are rated cat III @ 1000V. 20A. They fit firmly into the 4mm sockets with no slack and are of low resistance.
I did some basic tests on DC voltage using my lab power supply which has an accurate digital read out to two decimal places, the meter stabilizes quite quickly and the readings were within 0.01 (10 millivolts) of the set voltage on the power supply, repeatability was excellent each time. This test was carried out over the range of 1V to 29.99V (the max output of the Power supply)
AC voltage compared well with with my old Beckman meter, but generally this is less critical.
Next test was the capacitor test for this I used a close tolerance 2mfd motor capacitor, the reading obtained was 2.00mfd, spot on. Note, if testing large capacity electrolytics allow time for the cap to charge up fully for an accurate reading.
The frequency test confirmed the mains frequency as being exactly 50hz.
The ohms test, checking a high stability close tolerance 300 ohm resistor gave a reading of 301 ohms. An excellent result.
Temperature readings using the supplied probe in the steam from boiling water in a kettle gave a figure of 103deg C. within the published spec.
This meter can also check the duty cycle of pulse width modulation of square waves, has hold facility to lock the display on a reading, max min button, a range button so that you can select a particular range manually, and has wide current ranges both DC and AC up to 20amps. (Note, the meter is internally fused at 10 Amps on the 20Amp range and 0.5 Amps on the lower ranges, quick blow type.)
A transistor test is built in to check the hfe of both pnp & npn transistors, the wires just plug into the sockets provided. A bar graph is provided at the bottom of the scale, this gives a linear readout of the measurement akin to the old analogue meters with a pointer and is useful if you just want to know if a voltage is present without waiting for an exact figure to stabilise on the display.
I was quite surprised at the quality and accuracy of this meter given the price, and it has enough features to suit the requirements of virtually everybody who has the need for a test meter in their life.....
Pictures show actual readings obtained from my lab power supply, no 5 is capacitance range checking a 2 mfd capacitor, no 6 is on the ohms range testing a 300 ohm resistor of known accuracy (orange, black, brown) the results speak for themselves.
Update: There seems to be some misunderstanding and confusion among some users of digital multimeters as to what to expect and how they typically operate. This is compounded by the fact that many of these are of the auto ranging type which means that the meter automatically sets the range sensitivity for you and will always start at the most sensitive range which is the millivolt one. This is the reason why there are some complaints about the numbers continuously changing when switched on.
Digital meters have a high input impedance and very high sensitivity; this renders them susceptible to static voltage pickup from the test leads which act like aerials. These voltages are of a few millivlots only but sufficient to make the display continuously change, however this has no bearing on the final reading accuracy PROVIDING a good clean contact is made between the probe point and the test item, any dirt or tarnish on the test surface will result in varying readings. Make sure that the probe points penetrate through any such contamination to the clean metal underneath. It is not necessary for the display to be at zero before taking a reading with a digital meter (unlike an analogue meter which must be zeroed first) it simply reads what is there, it does not add the initial display reading to the actual voltage reading. Shorting the probes together will eliminate the static problem momentarily, and you will see the display count down to zero, but it is not necessary to wait for this before taking a reading. More expensive meters will count down more quickly to zero but in real life situations this is of no consequence and adds to the initial cost of the meter.
Latest update, 03-2024, I have now had this for 9 years (2015) and still working well, no regrets.
Niggles:
autoranging is slow on resistance&capacitance measurement but livable.
continuity test has to be activated on resistance range - as a frequently used function would have liked single press.
auto switch off is annoying 3 beep reminder then shutdown - even if meter is measuring? - seems like a bug to me.
has a (bipolar) transistor tester but its inscrutable to me at the moment-not intuitive.
Would be wary of using meter at high currents (> a few amps)
Good value home use meter but not pro level. Does what is says so no serious complaints.
good for general DIY use but not pro use
Top reviews from other countries
Cap test. Caps in the 400uf range take about 5 secs to read(charge) while smaller caps are much faster. Read one cap at 90picofarad which shows as 0.09nf on the screen. This is at its lowest scale of 40nf. Stated accuracy ranges from 2.5% to 5% depending on range.
Temperature probe was quite off at room temp. Showed 23C against 19.6 actual(17% error?) I also held the probe against my soldering iron reading 333C and 300C on hi and low settings, showing that it works at these temperatures, but I could not confirm accuracy of reading, however it is certainly in the right range..
I have not checked the current functions but have every reason to expect it will meet stated accuracy of 1.2% for AC below 6amp, 2% for 20amp scale. DC current claims 1% to 600ma and 2% for the 6A and 20 amp scale. Also have not checked the transistor hFE function but I assume it will work as stated. The probes that come with it work fine and are comfortable to hold. The flip stand on the back is a little flimsy and only locks in one position which I think is too low of an angle but that is a small thing. All and all, a great meter with good accuracy and a wealth of extra worthwhile functions!
The probes that come with it are okay for light or occasional duty, but like most techs I have my own set of high quality expensive probes anyway. I bought this item for the meter itself, and consider low cost probes a disposable item.
I noted some reviews commenting on the bare bones instructions and user manual. If you already know how to use any digital meter with similar functions then you shouldn't really need an instruction manual for this one. If you are a beginner then there are plenty of online resources to learn how to use a meter, what all the functions are for, and etc.
I've only been using it for a few weeks. I don't anticipate any problems but if any develop I'll update this review. Unless that happens, I highly recommend this meter to anyone looking for an item like it.
The customer service from ProsterUS was great. They contacted me personally by email to make sure that I received the product in a timely fashion and that it met my expectations, and I was happy with it, or to let them know so they could resolve any issues if I had any.
Yes, I purchased this item for myself with my own money and, no, I did nor receive any discount or whatever for my favorable review.
Je ne vais pas ré-écrire la notice ici mais juste aborder les points principaux, ce qui m'a plu et ce qui m'a moins plu à propos de cet article.
Bon point, le multimètre est vraiment grand (presque 190 x 90 mm avec des chiffres de 23 mm de haut !) et l'affichage est très lisible, bien que dépourvu de rétro-éclairage (ceci dit, il m'arrive rarement de faire des mesures électriques dans le noir complet...).
La pochette fournie (légèrement rembourrée et équipée d'une dragonne), bien qu'en plastique, est d'assez bonne qualité et permet de protéger le multimètre ainsi que ses accessoires.
Le multimètre est protégé par une véritable coque en caoutchouc amovible, destinée à absorber les chocs en cas de chute (pas en vulgaire plastique dur et inutile comme sur certains multimètres bas de gamme).
Les câbles fournis sont très corrects, avec une prise coudée côté multimètre et une longueur totale d'un mètre. Les sondes ne sont pas trop fines (comme souvent dans cette gamme de prix) et peuvent même se "clipser" à l'arrière du multimètre.
Une sonde de température d'environ 1 mètre de long est également fournie.
Il est vrai que le support arrière (une simple pièce en plastique) n'a pas l'air d'être d'une grande solidité mais elle permet toutefois de maintenir le multimètre incliné d'environ 30 ° sur un support horizontal (placer le support arrière le plus verticalement possible pour éviter les contraintes au niveau de la charnière).
Les mesures sont très précises (largement assez pour toute utilisation domestique voire professionnelle) et "l'autorange" est super pratique (sélection automatique du calibre approprié).
Liste des grandeurs "mesurables" :
- voltages DC & AC,
- intensités DC & AC,
- résistance,
- continuité (et test de diodes),
- capacité,
- fréquence / rapport cyclique,
- température (avec la sonde fournie),
- mesure de gain de transistors (HFE).
Fonctions supplémentaires :
- "RST" : réinitialisation (évite de devoir ramener le bouton rotatif en position "OFF"),
- "Hz/DUTY" : affichage de la fréquence / rapport cyclique lors de la mesure de tensions et intensités alternatives,
- "REL" : "calibrage" de l'affichage (soustrait la valeur affichée avant mesure à la valeur mesurée pour prendre en compte la capacité / résistance des cordons),
- "HOLD" : permet de figer l'affichage de la valeur mesurée (pour relecture à postériori),
- "RANGE" : sélection entre "autorange" et "manuel" + sélection du calibre séquentiellement.
Quelques restrictions :
Le multimètre se met automatiquement sur "DC" (continu) lorsqu'on passe de "OFF" à "V" ou "A" (mesure de voltages et d'intensités).
Pour mesurer une tension ou intensité alternative, il faut donc sélectionner "V" (ou "A") avec le bouton rotatif, appuyer sur la touche bleue "DC/AC" afin de choisir "AC" (alternatif) puis en dernier brancher les sondes sur la source alternative à mesurer.
Ceci dit, il m'est déjà arrivé par mégarde de brancher les sondes en premier sur une prise secteur 230 V (le multimètre étant sur "OFF") puis d'allumer le multimètre en plaçant le bouton rotatif sur "V". La mesure affichée ne correspondant pas du tout à ce que j'attendais (normal puisqu'il était sur "DC"), je suis vite passé sur "AC" grâce au bouton bleu "DC/AC" et il ne s'est rien produit de particulier, j'ai bien eu ma mesure de 230 V.
Je n'ai pas la preuve que ce genre de manipulation soit néfaste mais dans le doute, j'évite (la bonne procédure est d'ailleurs bien décrite dans le manuel)...
Lors de mesures de capacités, j'ai obtenu des résultats très précis mais il faut savoir que plus la capacité est grande, plus il faudra de temps avant d'obtenir sa valeur (le temps que le condensateur soit saturé, sans doute). On rencontre un phénomène comparable sur des multimètres plus chers mais à un moindre degré.
Dès qu'on sélectionne la mesure de capacité, Le multimètre affiche une valeur de quelques nF (due notamment aux cordons et sondes) : appuyer sur "REL" pour ramener l'affichage à "0000" puis mesurer continuellement jusqu'à ce que la capacité correcte apparaisse d'un coup.
La notice évoque un temps de 15 secondes pour mesurer un condensateur de 200 µF (capacité maximum mesurable). J'ai pour ma part observé un délai d'environ vingt secondes pour 100 µF mais il est vrai qu'avec de telles valeurs, on arrive aux limites techniques de l'appareil (la mesure de petits condensateurs étant quasi instantanée). Avec l'habitude, on devine à peu près le temps que va nécessiter une mesure de capacité en fonction du condensateur...
Bien que les deux piles AAA soient faciles à remplacer (il suffit juste d'ôter la coque en caoutchouc jaune puis de retirer l'unique vis qui retient le petit couvercle du compartiment à piles), le remplacement des fusibles relève de la mission impossible... En effet, en plus de ce qui vient d'être dit, il faut retirer le fond du multimètre (retenu par trois vis) pour accéder au circuit imprimé principal mais sa face visible ne comporte aucun composant (juste des pistes conductrices)... Les fusibles étant situés de l'autre côté du circuit imprimé (ainsi que tous les composants), il faut pour y accéder le désolidariser complètement de l'avant du multimètre (dix vis de plus à retirer). Sachant que selon le modèle de bouton rotatif utilisé, il n'est pas impossible que la bille de "crantage" soit éjectée avec son ressort lors du démontage et que le tout soit assez difficile à remonter ensuite (à confirmer car pas encore fait...). Prudence, donc...
Personnellement, ce type d'intervention ne me rebute pas spécialement car je suis électromécanicien de formation mais ce n'est peut-être pas le cas pour tout le monde. De plus, vu qu'il faut démonter intégralement le multimètre pour remplacer l'un ou l'autre des fusibles, je me demande si cela ne fait pas sauter la garantie...
Le manuel livré est bien plus explicite en anglais qu'en français (dont la traduction faite n'importe comment ne veut pratiquement rien dire...).
En conclusion, mis à part ces quelques détails, je suis très satisfait de mon investissement qui, je l'espère, me servira longtemps.
A noter qu'il existe aussi le PROSTER VC99 (pour environ 7 € de plus) dont les différences avec le VC97 sont notamment :
- présence d'un "bargraph" sous les chiffres en bas de l'affichage LCD (pour visualiser plus facilement les variations de la grandeur mesurée),
- mesure des températures en Fahrenheit en plus des degrés Celsius,
- mémorisation des valeurs "MAX" et "MIN" lors d'une mesure (bouton "MAX/MIN" en lieu et place du bouton "RST" du VC97),
- deux positions distinctes "Volts DC" et "Volts AC" sur le bouton rotatif,
- la 4ème position du bouton rotatif regroupe 3 fonctions accessibles séquentiellement via le bouton bleu "DC/AC" : Ohms / test diodes / test continuité.
J'espère que ce commentaire, objectif et sans concessions, aura pu vous aiguiller dans votre choix...
