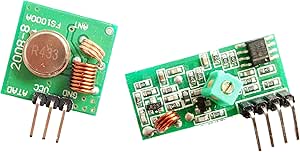

1pcs 433Mhz RF transmitter and receiver kit for Arduino project

4.0 out of 5 stars 150 ratings
Currently unavailable.
We don't know when or if this item will be back in stock.
  • Receiving frequency: 433Mhz
› See more product details
Amazon Gaming Store
Upgrade your setup at the Gaming Store. Shop now.

Product description

Receiver module parameters
1.Product Model: MX-05V
2.Operating voltage: DC5V
3.Quiescent Current: 4MA
4.Receiving frequency: 433.92MHZ
5.Receiver sensitivity:-105DB
6.Size: 30 * 14 * 7mm
7.External antenna: 32CM single core wire, wound into a spiral

Technical parameters of the transmitter head
1.Product Model: MX-FS-03V
2.Launch distance :20-200 meters (different voltage, different results)
3.Operating voltage :3.5-12V
4.Dimensions: 19 * 19mm
5.Operating mode: AM
6.Transfer rate: 4KB / S
7.Transmitting power: 10mW
8.Transmitting frequency: 433M
9.An external antenna: 25cm ordinary multi-core or single-core line
10.Pinout from left ? right: (DATA; VCC; GND)

Application environment
Remote control switch, receiver module, motorcycles, automobile anti-theft products, home security products, electric doors, shutter doors, windows, remote control socket, remote control LED, remote audio remote control electric doors, garage door remote control, remote control retractable doors, remote volume gate, pan doors, remote control door opener, door closing device control system, remote control curtains, alarm host, alarm, remote control motorcycle remote control electric cars, remote control MP3.

Remark
1.VCC voltage module operating voltage and good power filtering;
2.Great influence on the antenna module reception, preferably connected to the 1/4 wavelength of the antenna, typically 50 ohm single conductor, the length of the antenna 433M of about 17cm;
3.Antenna position has also affected the reception of the module, the installation, the antenna as possible straight away from the shield, high pressure, and interference source; frequency used to receive, decode and oscillation resistor should match with the transmitter.

package content:
1*Receiver module parameters
1*Technical parameters of the transmitter head

Product details

  • Is discontinued by manufacturer ‏ : ‎ No
  • Package Dimensions ‏ : ‎ 7.6 x 4.5 x 1.1 cm; 20 g
  • Date First Available ‏ : ‎ 1 Aug. 2013
  • Manufacturer ‏ : ‎ buytra
  • ASIN ‏ : ‎ B00E9OGFLQ
  • Item model number ‏ : ‎ SE114
  • Guaranteed software updates until ‏ : ‎ unknown
  • Customer reviews:
    4.0 out of 5 stars 150 ratings

Customer reviews

4 out of 5 stars
150 global ratings

Customers say

Customers find the RF transmitter and receiver kit to be a fantastic piece of equipment that's very easy to use and offers good value for money. They appreciate its wireless connectivity, with one customer noting it's handy for communicating between Arduino boards. The functionality receives mixed feedback - while some say it works great, others report it doesn't work consistently. The range and instructions also get mixed reviews, with several customers noting the range isn't great and one mentioning the lack of documentation.

Select to learn more

QualityValue for moneyEase of useWireless connectivityFunctionalityInstructionsRange
18 customers mention ‘Quality’17 positive1 negative

Customers find the RF transmitter and receiver kit to be of good quality.

"Cheap but no instructions so how on earth do you use it?" Read more

"Lokks well made not able to check them out yet on Arduino" Read more

"good , delivered well in time. product as described." Read more

"These are interesting and certainly worth looking at for experimentation. They work with the limitations described by other reviewers...." Read more

15 customers mention ‘Value for money’15 positive0 negative

Customers find the RF transmitter and receiver kit to be good value for money.

"Good value and very useful for remote control projects using mains radio sockets. Had no problem using it with the RCSwitch Library..." Read more

"These are such good value for money and very easy to use...." Read more

"these work and are obviously cheap but when i used them in two arduino circuits i could barely get a range of 3m using 1/2 or 1/4 whip antennae...." Read more

"These are great value boards and I found them easy to get working once I had found the appropriate documentation and essential Arduino library...." Read more

8 customers mention ‘Ease of use’8 positive0 negative

Customers find the RF transmitter and receiver kit easy to use and set up.

"You cant really go wrong for this price and it is so easy to use. I used mine with an arduino uno and had it set up within 5 minutes...." Read more

"...Very easy to plumb into an Arduino. I had it working in minutes...." Read more

"...The transmitter and receiver are controlled by just one pin. Very easy to use." Read more

"These are such good value for money and very easy to use...." Read more

6 customers mention ‘Wireless connectivity’6 positive0 negative

Customers appreciate the wireless connectivity of this RF kit, with one mentioning it's handy for communicating between Arduino boards, while another notes it's useful for remote control projects and controlling plugin wall sockets.

"These are (at the time of writing) very cheap and a quick way of transmitting to Arduino boards (although you don't need to use microcontrollers)...." Read more

"Good value and very useful for remote control projects using mains radio sockets. Had no problem using it with the RCSwitch Library..." Read more

"handy for communicating between Arduino boards in places where running a cable is difficult...." Read more

"...I hooked this transmitter up and within minutes was controlling remote plugin wall sockets...." Read more

21 customers mention ‘Functionality’13 positive8 negative

Customers have mixed experiences with the functionality of the RF kit, with some reporting it works great and functions on Raspberry Pi, while others mention it doesn't work consistently.

"Works fine with my Arduino, as others have said look on the web for documentation, there's lots of it around." Read more

"...The second problem is that the receiver seems to have a problem in that when there is no signal from the transmitter it produces random output...." Read more

"Works on my raspberry pi, just got to be patient with the dleivery" Read more

"These are great value boards and I found them easy to get working once I had found the appropriate documentation and essential Arduino library...." Read more

3 customers mention ‘Instructions’1 positive2 negative

Customers have mixed opinions about the instructions for the RF transmitter and receiver kit.

"...plus side these things seem easy to use; the downside is there are no docs at all,..." Read more

"Seem to work;ish - no docs at all..." Read more

"Cheap but no instructions so how on earth do you use it?" Read more

6 customers mention ‘Range’1 positive5 negative

Customers report that the range of the RF transmitter and receiver kit is poor.

"The range on these was very short indeed. I couldn't get a clear signal beyond a few metres...." Read more

"...I would recommend soldering on aerials though as it only transmits over a very short distance and uses ASK for modulation so I would also recommend..." Read more

"...I found the range isn't that great but by increasing the voltage on the transmitter I could reliably transmit about 25m and through a couple of..." Read more

"...It is that easy. The range is very poor out of the box, just a few cms...." Read more

Remote Control for Pi and Arduino - Control your Arduino or Pi Via 433Mhz Remote
5 out of 5 stars
Remote Control for Pi and Arduino - Control your Arduino or Pi Via 433Mhz Remote
These will work at the level of attention paid to the antennae and timing of the data, these will work with the RFSwitch library for the Arduino and RaspberryPi with any old piece of wire, to use for communications look at a wiki on AM RF Aerials (17cm enamelled wire from an old Inductor to make a Spiral Square loop Transmitter, 30cm enamelled wire coiled round an empty piece of Ballpoint pen for receiver), the antennae are directional in the sense that the best Tx or Rx power will be got from 90 degrees to the plane of the coil. Read the Playground pages on serial comms and the RF Library for advice on timing of data packets........ For the Price they are a MUST have for any Maker Tinkerer...........
Hide
Thank you for your feedback
Sorry, there was an error
Sorry, we couldn't load the review

Top reviews from United Kingdom

  • J. D. Harrop
    5.0 out of 5 stars Absolutely superb
    Reviewed in the United Kingdom on 19 January 2014
    Verified Purchase
    Took a couple of weeks to come, as expected. Both transmitter and receiver are included which is everything you need for one-way communication between a pair of Arduinos. Very easy to plumb into an Arduino. I had it working in minutes. Three connections on the transmitter (GND, ATAD and VCC) and you can connect two directly on the breadboard so you only need one jumper. Four connections on the receiver (GND, DATAx2 and VCC) and you only need 3 and can connect VCC directly so you only need two breadboard jumpers. These devices accept a wide range of voltages for VCC so you don't have to burden the Arduino's 5V regulator. Put ATAD on the transmitter HIGH or LOW and the DATA pins on the receiver go (with high probability) HIGH or LOW. It is that easy.

    The range is very poor out of the box, just a few cms. However, there are little solder tabs marked ANT where you can add an antenna. I soldered on a right-angle pin I had lying around which immediately improved the range to about 1m. If I put a female-connected wire on each of the transmitter and receiver then I get excellent communication from one corner of my house to the opposite corner (~30m) which I am very happy with.

    Superb value for money. Highly recommended.
    34 people found this helpful
    Helpful
     Report
  • Woolly
    4.0 out of 5 stars 433Mhz RF transmitter and receiver kit
    Reviewed in the United Kingdom on 24 May 2014
    Verified Purchase
    This transmitter/receiver pair are very compact little modules, built on rather thin, but good quality PCBs. The transmitter (square PCB, 3-pin connector) has a through-hole pad marked "ANT" (top right-hand corner) to which a simple 17cm straight wire aerial should be attached. It needs a positive supply (3.5V to 12V) to "VCC" pin, 0V to "GND" pin; 12V should give maximum range. A positive voltage digital signal applied to the "DATA" pin amplitude-modulates the transmitted signal. (Amusingly, the DATA input pin on my PCB was marked "ATAD" - slight problem with the silkscreen artwork?) The receiver (oblong PCB, 4-pin connector) has a similar pad, (bottom left-hand corner) unmarked, adjacent to the coil. This pad needs a similar aerial attached. The receiver needs a +5V supply on "VCC", 0V on "GND". Received digital data, nominally 5V amplitude, is output on either of the "DATA" pins. I have not yet checked the range of this Tx/Rx pair, nor their power consumption. The only slight problem I have detected is that in the absence of transmission, the receiver tends to respond to random noise, and generates spurious output signals. The signal processing software or hardware will need to be designed to reject these signals. These modules represent extraordinarily good value for money, are very simple to operate, and promise to be fun to use.
    17 people found this helpful
    Helpful
     Report
  • tonygo
    5.0 out of 5 stars Great value boards - once you have the documentation
    Reviewed in the United Kingdom on 10 May 2014
    Verified Purchase
    These are great value boards and I found them easy to get working once I had found the appropriate documentation and essential Arduino library. You just need to solder 15cm of stiff wire to the antenna holes to increase the range.

    They may take quite a long time to arrive but at this price you really cannot complain. They did arrive within the expected delivery window.

    There is an excellent description of how to use them at:
    [...]
    The link to the library at this site is out of date and in the rather more difficult .rar file format (which needs Bitser to unpack it), rather than .zip

    The essential Arduino library to drive these clever and cheap little boards is called VirtualWire-1.27. It can be downloaded from:
    [...]

    This driver has been superseded by RadioHead but works well enough with these simple boards.

    Now that I have them working properly they will be the basis of several more complicated projects.

    I've just written a guide sheet on how to use them. Contact me on arduinolink (AT) gmail.com and I will send a copy to make up for the lack of documentation from the supplier.

    Tony Goodhew
    2 people found this helpful
    Helpful
     Report
  • Dr. David A. Gilbert
    3.0 out of 5 stars Seem to work;ish - no docs at all
    Reviewed in the United Kingdom on 8 June 2014
    Verified Purchase
    Well on the plus side these things seem easy to use; the downside is there are no docs at all,
    and I'm relying on the other reviews here for the clues!
    (Does anyone know where the antenna wire goes on the receiver? Is that the blob next to the coil?)
    It looks a pretty wide (~1MHz) bandwidth on my sdr.

    Update: There's a subtlety with these guys; most of the AVR libraries use a special protocol rather
    than sending simple serial down them.
    I couldn't get 9600 baud serial to work, but I did get 1200 baud serial to work, the trick is to
    send a 00 byte at the start of what ever you're going to send and keep the messages short.

    Some possibly useful pointers:
    http://tutorial.cytron.com.my/2012/04/05/low-cost-wireless-uart/
    http://www.cytron.com.my/datasheet/WirelessDevice/RF_TX_User%27s_Manual.pdf
    http://www.cytron.com.my/datasheet/WirelessDevice/RF_RX_User%27s_Manual.pdf
    4 people found this helpful
    Helpful
     Report
  • RH
    1.0 out of 5 stars Missing components and dry joints
    Reviewed in the United Kingdom on 6 April 2017
    Verified Purchase
    I ordered 2 of these RX/TX pairs. I only actually wanted the transmitters, as the receivers are known not to be very good (buy a superheterodyne one instead). Anyway ... out of the two transmitters delivered, one was missing a 56K resistor (shown in the pic) and the other seems to have a dry joint on the transistor (shown on the left in the pic). This makes one useless all the time, and the other mostly useless unless I flex the board to make the contact. I've managed to fix one of the boards by replacing the missing surface mount resistor with a through hole version, but even so, not good, even considering the cheap price.

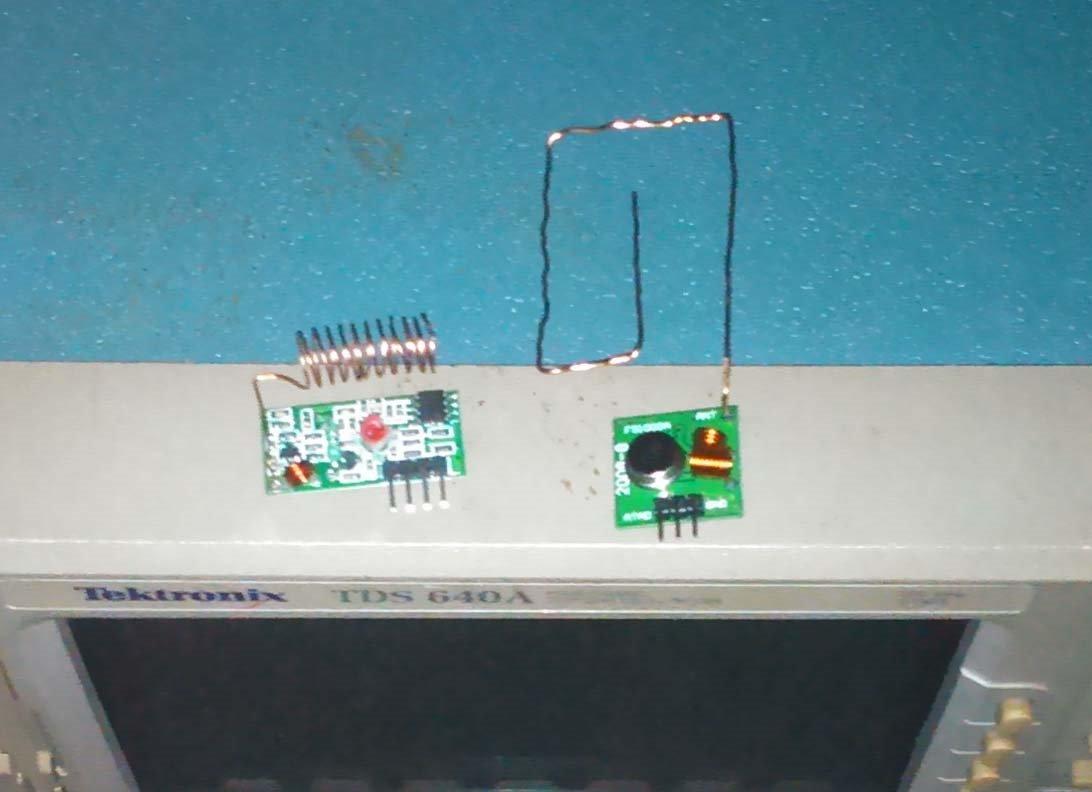

    Customer image
