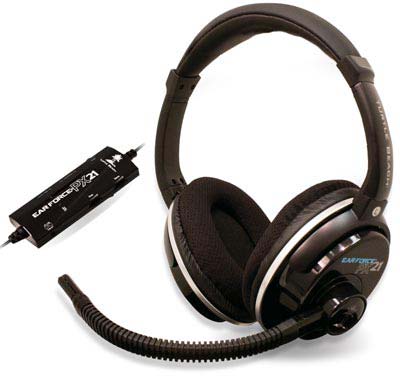

Turtle Beach Headset : Ear Force PX21 (PS3)

The Ear Force PX21 integrates premium stereo game sound with crystal-clear communication on the PlayStation Network (PSN), Xbox Live and PC/Mac to create the definitive audio environment for playing popular game titles on all platforms. The PX21 is two headsets in one—a stereo USB headset for chat sound and an amplified stereo headset for game sound. That means you can independently control chat and game sound from a single control box whether you’re playing PS3, Xbox or PC games. Large, comfortable ear cups with a lightweight, rugged design provide the ultimate in comfort during extended game play. The PX21 gives you a significant advantage because you can hear sound cues others can’t, so you’ll react faster and take them out before they take you out. Unique gaming features such as variable bass boost, chat boost, stereo expander and convenient volume controls for chat and game audio, provide a competitive edge that can make the difference between winning and losing. If you’re serious about your PS3, Xbox 360 or PC gaming, then get serious about the sound. Move up to the Ear Force PX21 and become a better player while experiencing your games as they were meant to be heard.

For gamers who want choices in the type of comfort and sound they need to experience.

• 40mm diameter speakers with neodymium magnets.
• Speaker Frequency Response: 20Hz - 20kHz, >120dB SPL at 1kHz.
• Condenser Microphone Frequency Response: 50Hz - 15kHz.
• Cable length: 16 ft. (4.87m).
• Weight: 6.4 oz (233g).

• Headphone Amplifier: Stereo DC-coupled, 35mW/ch, THD is less than 1%, Frequency Response: DC - 30kHz.
• Bass Boost continuously adjustable from 0dB to +12dB at 50Hz.
• Mic mute switch.
• Stereo expander switch.
• Maximum analogue input level with volume control on maximum setting: 2Vpp (700mV rms).
• 3.5mm plug for line output.
• USB connector for power, mic connection and stereo audio.
• 2.5mm mic output jack.
• USB connector for power (5VDC at less than 60mA max).
• Dimensions: Height .5in (1.27cm), Width 2in (5.08cm), Depth .75in (1.905cm).

PX21 To The PS3 Using the Standard A/V Cables.

Connecting the PX21 Using the Standard PS3 A/V Cables. Connect the PS3 audio cables (red/white) to the PX21 splitter cable (red/white). Connect the PX21 splitter cable (red/white) to the TV audio input. Connect the PX21 splitter cable (green) to the PX21 audio cable (green). Insert the PX21 USB connector to a USB port on the PS3. Connect the PS3 video output plug (yellow) to your TV’s video input RCA jack (yellow).

PX21 to a PS3 with HDMI.

Connecting the PX21 to a PS3 with HDMI. Connect the PS3 audio cables (red/white) to the PX21 splitter cable (red/white). Connect the PX21 splitter cable (red/white) to the TV audio input. Connect the PX21 splitter cable (green) to the PX21 audio cable (green). Insert the PX21 USB connector to a USB port on the PS3. Connect one end of the HDMI cable to the PS3 HDMI output and the other end to the TV.

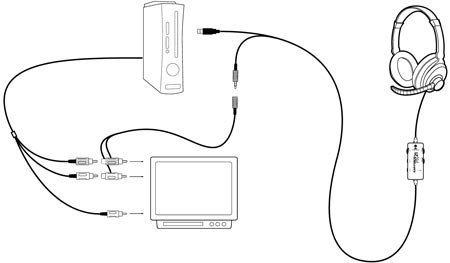

PX21 to the Xbox 360 Using Standard A/V Cables.

Connecting the PX21 to the Xbox 360 Using Standard A/V Cables. Connect the Xbox audio cables (red/white) to the PX21 splitter cable (red/white). Connect the PX21 splitter cable (red/white) to the TV audio input. Connect the PX21 splitter cable (green) to the PX21 audio cable (green). Insert the PX21 USB connector to a USB port on the Xbox. Connect the Xbox video output plug (yellow) to the TV video input RCA jack (yellow).

PX21 to the Xbox 360 With HDMI.

Connecting the PX21 to an Xbox 360 with HDMI. Connect the HDMI cable from the Xbox to the TV. Connect the Xbox HD AV cable to the Xbox. Connect the PX21 splitter cable (green) to the PX21 audio cable (green). Insert the PX21 USB connector to a USB port on the Xbox. Connect one end of the HDMI cable to the Xbox HDMI output and the other end to the TV.

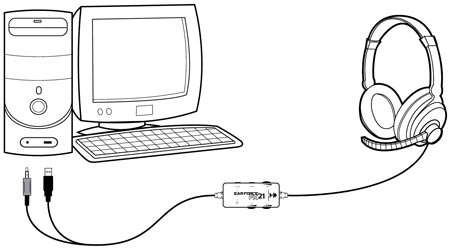

PX21 to a PC or Laptop

Connecting the PX21 to a PC or Laptop. When used as a PC gaming headset, the PX21 functions as two independent headsets in one package: Amplified Stereo Headphones: The green 3.5mm plug is used for sending the stereo game signal from the PC sound card to the PX21 headphone amplifier so you can hear game sounds, music and other sounds from your PC. The overall volume level is set by the Game volume control on the PX21 amplifier. USB Stereo Headset: The USB connection is used for mic and chat signals and appears as “Turtle Beach USB Headset” in Windows operating systems. This lets you assign the PX21 mic and chat in your game software as a USB audio device. You can set the microphone and chat levels independently with the Windows mixer software, as described elow. After configuring these volume settings, you can set the chat level with the Chat volume control on the PX21 amplifier. Note that each time you disconnect the PX21 from the USB port, the volume settings described below may revert back to their default settings. As such, you might have to go back and set them again each time you remove and insert the PX21 USB connector.

The Turtle Beach Ear Force PX21 stereo headset has been specially designed for use with the Playstation 3 for clear communication while you're playing your favourite games, and is also compatible with Xbox 360, PC and Mac.

The Ear Force PX21 USB headset eliminates feedback and includes a Chat Boost option to increase chat volume for different games. You can even control the volume of games and chat separately.

The swivel ear cups and 5-metre cable guarantee hours of comfort during those nail-biting gaming sessions!

General:

Product Type : Headset

Colour : Black

Recommended Use : Game console

Features : Bass Boost, mute button, volume control, built-in amplifier, USB bus-powered

Headphones:

Headphones Type : Headphones - binaural

Headphones Form Factor : Ear-cup

Connectivity Technology : Wired

Sound Output Mode : Stereo

In-Cord Volume Control : Yes

Microphone:

Type : Boom

Microphone Operation Mode : Mono

Connections:

Connector Type : 1 x USB

Miscellaneous:

Cables Included : 1 x USB cable - integrated ¦ 1 x audio adaptor - external

(free converter plug included if required)
