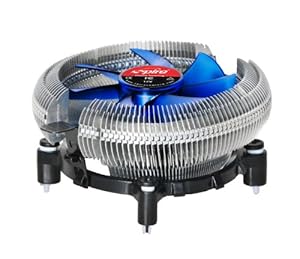

The Spire Rotor Pro is a cost effective Universal socket Intel and AMD cooler. The highly-precise engineered Omni-directional heat-sink provides superb performance.
The 90x25mm DC fan creates sufficient airflow at a speed of 2000RPM which is barely audible. Universal application to all current Intel and AMD sockets make the Rotor Pro a great versatile solution. AMD users do not need a single piece of tool and can just snap on the heat-sink hassle free. Intel users just need to replace the push pin bracket supplied and they're ready to fire up their system. The Rotor Pro is tested at maximum TDP 95W with a decent thermal performance rate of 0.32C/W. If you want a higher performance similar cooler the Rotor DT HP will do the job (search Rotor DT HP on Amazon)
Main Features:
Universal for both AMD & Intel sockets
Aluminum Omni-directional heat-sink
90x25mm very silent DC fan
Tool-free, AMD approved retention
Intel approved Push-pin retention included
Retail packed for safe transportation
S420 Thermal compound included
3 years manufacturer warranty
Product Includes : * Multilanguage Owners Manual *
Retention bracket * Push-pins *
S-420 Thermal compound
Product Specification
Socket 1156 / 1155 / 1366 / 775 / AM2 / AM3 / AM3+/ AMD FM1
Dimensions
Heat sink : 117.6×117.6×60 mm (l × w × h)
12VDC Fan : 90×90×25 mm
Material Al
Bearing Sleeve bearing
Rated speed
Cooler : 700~2000 RPM +/-10%
Rated power 2.16 W
Rated Voltage 12 V
Noise level 10~19 dBA
Air flow 38.95 CFM Max.
Current 0.18 A
Connector 2510-4 PIN
Thermal resistance 0.312 oC/W
Thermal paste Stars-420
Warranty 3 years
Packaging type blister box
Package includes
LGA 775&1156&1366 Clip / stars 420 grease/manual
N.W 0.271 KG
Life hours Sleeve: 30.000
