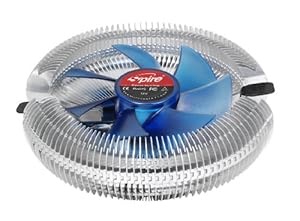

Spire Rotor DT HP CPU Cooler.Quiet low profile high performance cooler, Universal fitting for Intel sockets 775 1155 1156 1366 & AMD AM2 AM2+ AM3 AM3+ & FM1.Omni-Directional Aluminum Heat-Sink, Direct-Touch Heat-pipe base, Two (2) 6mm heat-pipes, 90x25mm Blue Fan, Sleeve Bearing, 2400RPM, 26.0dBA, 46.46CFM. Suggested for use in cases where height is an issue but you still need a powerful cooler.

by Spire

Currently unavailable.
We don't know when or if this item will be back in stock.
  • Two (2) 6mm all copper Direct-Touch heat-pipes
  • Tool-free, AMD approved retention
  • Intel approved Push-pin retention included
  • S420 Thermal compound included
  • 3 years manufacturer warranty
See more product details

Product Information

Technical Details
BrandSpire
Item model numberRotor DT-HP
SeriesRotor DT-HP

Additional Information
ASINB0070ZYDNS
Best Sellers Rank 140,972 in Computers & Accessories (See top 100)
Shipping Weight499 g
Date First Available23 Jan 2012

Feedback
 Would you like to update product info, give feedback on images, or tell us about a lower price?


Product Description

The Spire Rotor DT-HP is a universal socket Intel and AMD cooler equipped with two (2) 6mm Direct-Touch heat-pipes. The highly-precise engineered Omni-directional heat-sink provides superb performance enhanced by the two heat-pipes that make direct contact with the cpu heat-spreader. The 'build-in' 90x25mm DC fan creates sufficient airflow of 46CFM at a speed of 2400RPM. Universal application to all current Intel and AMD sockets make the Rotor DT-HP a great versatile solution. AMD users do not need a single piece of tool and can just snap on the heat-sink hassle free. Intel users just need to replace the push pin bracket supplied and they're ready to fire up their system. The Rotor Pro is supplied with Stars-420 thermal compound and tested and maximum performance 130W Micro-processors.

Main Features:
Two (2) 6mm all copper Direct-Touch heat-pipes
Universal for both AMD & Intel sockets
Aluminum Omni-directional heat-sink
Silent VRM 90x25mm DC fan
Tool-free, AMD approved retention
Intel approved Push-pin retention included
Retail packed for safe transportation
S420 Thermal compound included
Best cooling performance on hot cpu's up to TDP 95-110W
3 years manufacturer warranty

Compatibility:
The Rotor DT-HP is conform CE/ROHS & WEEE directive and compatible with Intel 775/1155 & 1156 sockets as well as AMD AM2/3/3+ & FM1 main-board sockets.
Product Includes :
Owner Manual
Warranty registration card
Stars-420 Thermal grease injection tube
Installation clip/bracket.

Product Specification
Dimensions
Heat sink : 132×132×52 mm (l × w × h)
12VDC Fan : 90×90×25 mm
Heatpipe Two (2) 6mm
Bearing Sleeve bearing
Rated speed 700~2200 RPM +/-10%
Rated power 1.56 W
Rated Voltage 12 V
Noise level 10~22 dBA
Air flow 46.46 CFM Max.
Current 0.13 A
Connector 4 PIN
Thermal resistance 0.315 oC/W
Static Pressure 2.11 mmH2O

Customer Questions & Answers

Customer Reviews

4.2 out of 5 stars
Share your thoughts with other customers

Most Helpful Customer Reviews

1 of 1 people found the following review helpful By simon hardy on 12 Aug 2013
Verified Purchase
I installed this heatsink on my Asrock a75fm2 mini itx motherboard replacing my old low profile Akasa heatsink. I replaced the old heatsink as my old temperatures constantly were reaching the low-mid 40 degrees mark on just general tasks such as watching HD youtube videos and web browsing at the same time and it was a bit on the noisy side.

I must say this heatsink is much quieter and on having 3 videos open and 3 web pages open it reaches a minimum of 10 degrees less! It literally hasn't gone past the 36 degrees mark. On idle it hovers on 29-30 degrees. It looks the part too. Never used a Spire product before but so far so good! much happier!
Comment Was this review helpful to you? Yes No Sending feedback...
Thank you for your feedback. If this review is inappropriate, please let us know.
Sorry, we failed to record your vote. Please try again
1 of 1 people found the following review helpful By Mr. M. Warren on 25 Dec 2012
Verified Purchase
Buyers should be made aware that due to the size of the heat sink, that it may be difficult or impossible to fit this cooler on M-ATX systems but ATX systems as far as I know seem to be OK.
Comment Was this review helpful to you? Yes No Sending feedback...
Thank you for your feedback. If this review is inappropriate, please let us know.
Sorry, we failed to record your vote. Please try again
Verified Purchase
I have installed 100s of fans over the years working as a systems engineer for one of the largest computer company's, but now my interest in fans has changed, I install them in super High Definition TV Systems in-between the layers of powerful blue ray amplifiers and digital HD recorders in glass racks under the large screens in domestic environments. I always chop the plug off and run them on 9 volts, and I never use the supplied cooling compound this is so it does not get anywhere near children or animals, I am not interested in warranties as they never fail. With a room temperature of 72 degrees the internal layer temperature never exceeds 78 F and in systems like this I install a remote sensor to a digital thermometer on the front of the kit. This particular fan is super silent on it,s reduced voltage. One further point of interest is the fan is much deeper than the 25mm given in the technical specification of this product.
Comment Was this review helpful to you? Yes No Sending feedback...
Thank you for your feedback. If this review is inappropriate, please let us know.
Sorry, we failed to record your vote. Please try again
Verified Purchase
The Spire CPU fan was delivered quickly. And just as quickly into a media server, replacing the standard fan that comes with the AMD CPU. Now that fan was noisy! The media server lives in the bedroom and the stock CPU fan had an awful drone to it.

The wife nearly cancelled the Media-Server-in-the-Bedroom project. Determined to get Sky out of our house, I thought I'd push on with the Spire fan. The Spire is rated at 26.0dBA but what does that really mean? I assumed that meant quiet.

Sadly, the search continues. The Spire IS quieter, and would do the job for any computer that is located anywhere except a bedroom. In the bedroom, you can still hear quite a hum that is nowhere near the noise the Sky Plus makes. I appreciate that the Sky Plus has nowhere near a quad-core CPU.

I've located another CPU fan, a Scythe Shuriken that is rated at between 10.5 - 31.67dBA. What does that mean? Only one way to find out. I obtained it elsewhere for faster delivery. But I'll review it on Amazon soon, so please do search for my reviews...
Comment Was this review helpful to you? Yes No Sending feedback...
Thank you for your feedback. If this review is inappropriate, please let us know.
Sorry, we failed to record your vote. Please try again
Verified Purchase
Ive found a use for this fan and it works great. However Its original purpose was for my new I7 CPU which has a 1155 socket, which on amazon it says it fits.. which it doesn't. It actually supports socket 775 1156 and the AMD ones but not 1155! However a great fan.
