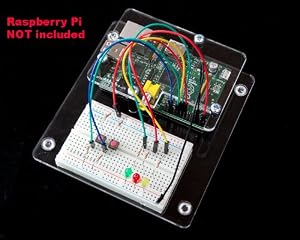

Electronic Starter Kit for Raspberry Pi (Raspberry Pi NOT included)

by SK Pang Electronics
4.2 out of 5 stars  See all reviews (19 customer reviews)
Price: £21.99
o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o
In stock.
Dispatched from and sold by SK Pang Electronics Ltd.
  • Raspberry Pi Cover with breadboard area
  • Jumper wires, M/F 150mm
  • 12 x LEDs
  • 2 x Mini push buttons
  • Breadboard
See more product details

Frequently Bought Together

Electronic Starter Kit for Raspberry Pi (Raspberry Pi NOT included) + Raspberry Pi User Guide + Raspberry Pi Model B 512 MB RAM Latest VERSION
Price For All Three: £61.64

These items are dispatched from and sold by different sellers.

Buy the selected items together


Product Information

Technical Details
Item Weight181 g
Product Dimensions21.8 x 15 x 2.2 cm
Item Package Quantity1

Additional Information
ASINB0082LD2B8
Best Sellers Rank 2,987 in DIY & Tools (See top 100)
Shipping Weight181 g
Delivery Destinations:Visit the Delivery Destinations Help page to see where this item can be delivered.
Date First Available12 May 2012

Feedback


Product Description

This is a basic kit components that enables you to control LEDs, reading status of switches on your Raspberry Pi. (Raspberry Pi NOT included.)

Kit Contents

1 x Raspberry Pi Cover with breadboard area
1 x Breadboard with 390 contacts
10 x Jumper wires, M/F 150mm
4 x 5mm Red LED
4 x 5mm Yellow LED
4 x 5mm Green LED
2 x Mini push button
12 x resistor for LED
2 x 10k resistor

Assembly instruction and examples
http://www.skpang.co.uk/blog/473

Basic electronic and linux experience required. Not suitable for complete beginner.
Raspberry Pi not included.

Raspberry Pi® is a trademark of the Raspberry Pi Foundation.

Look for similar items by category



Customer Reviews

Most Helpful Customer Reviews
41 of 41 people found the following review helpful
3.0 out of 5 stars Good, but layout is a bit odd though 26 July 2012
I was asked to look at this for someone else and it is a nice clean build but a simple reorientation or shifting the proto board to the right (looking down) would have been all that was needed to make this much more usable. The plug board is so close to the Pi that (using the current layout) if you need or use either a composite monitor or any straight audio plug you will loose access to the left hand side of the plug board.

A little expensive really at £22 for a couple bits of perspex, screws and headers, a dozen leads, a small prototype solderless breadboard and misc components. You could pull all these together much cheaper, for the same price you could maybe add a separate power module on the base unit to provide a 5V so you do not overload the Pi, a larger board and in a throw back to ZX81/Z80A interfacing days include a few IC (aka ULN2803A darlington drivers and 74 series TTL chips) to allow the GPIO ports to sink more current otherwise if you are not careful you might try to draw too much current from the PIO pins. The gert board when it is available is a more sophisticated way of doing this too.

For those that just want to see can they blink an LED from a Pi with minimal effort you will get instant gratification but you will run out of options quickly after that.
Comment |
Was this review helpful to you?
1 of 1 people found the following review helpful
5.0 out of 5 stars Rasperrypi case and Starter kit. 11 July 2012
Amazon Verified Purchase
Having received my Raspberry Pi some weeks ago I knew I'd need a case. I was going to build my own but after doing a little research I came across this product which was recommended in a Linux magazine. Although I only have a little knowledge of electronics, I was suddenly inspired by the memories as a youth tinkering and building radios and such. The thought of using my RP as part of some renewed hobby had really inspired me; so I bought one straight away.

On arrival I was really pleased to see the inclusion of a few resistors diodes etc. to start you off. The parts were bagged separately and although there were no instructions it was very easy to put together. I'd recommend keeping the spacers screwed in loose until you have the RP in place; then tighten. The Acrylic was protected by a film of rip of plastic which keeps the viewing side very clean. Stick on silicone feet finish off the build.

Overall I think the RP now looks really smart; my 17 year old son was really impressed :D So I'd recommend it to anyone. Be aware though this isn't a sealed case so you'll need to store it away safe and keep drinks and such well away. On the plus side it shouldn't get hot :)
Comment |
Was this review helpful to you?
4 of 5 people found the following review helpful
Amazon Verified Purchase
I received my Raspberry Pi this week and immediately looked for a case. I was drawn to this particular set up as it contains a BIM Board and cables to allow you to play with the Raspberry Pi's I/O Feature.

It would have been great to have a page of instructions with this case.

*** Update, I should have spotted on the bag that contained the perspex sheets the following
[...]

Contains full instructions on how to assemble the case :-)
***

You get two perspex sheets pre-cut, but with a pattern etched on the surface. At first I thought these were break out parts, they are not, they simply show the alignment of the PI to the board.

The four plastic pages/board spacers have a notch cut out on on end. These notches hold the PCB in place and line up nicely.

To assemble.

The largest perspex sheet is the bottom with the raspberry pie SD Card on the right, the USB ports on the left. Insert the two plastic begs and tighten slightly, sliding in the Raspberry pi In and ensuring the notches align with the PCB.

Then insert the remaining two plastic spaces, again with the notch gripping the PCB and tighten the four screws.

The top (Smallest Perspex Part) goes on top and is secured by four screws.

The BIM board has adhesive backing and sticks to the front area of the case.

Four rubber feet are supplied and stick them on the four small screw holes on each corner of the board.

Et Voila, your ready to go!

The kit contains 2 miniature switches, 10 LEDs' variable colours, and 10 connectors that attach nicely on the Raspberry PI's connector block and the BIM Board.

This brings back childhood memories of trying the latest elektor electronics magazines monthly projects on BIM and Vero-Board :-)

All I need to do know is work out how to program the Pi !

The case is sturdy, and in my opinion is worth the spend. But please note, it does not encapsulate the Pi device, so little fingers could touch the remaining circuitry!

Happy Pi'ing... :-)
Comment |
Was this review helpful to you?
Most Recent Customer Reviews
3.0 out of 5 stars Its OK...pretty basic
Kit includes a very basic set of LED's, 2 P-T-M switches, wires to connect to the GPIO and some resistors to stop blowing the LEDs. Read more
Published 5 days ago by Phil Davies
5.0 out of 5 stars Great quality kit, comes with what you need to get started!
This is a great kit, easy to put together and holds the Pi firmly.

Comes with a nice selection of LEDs and resistors to get you started playing on the breadboard. Read more
Published 23 days ago by S13_Mills
1.0 out of 5 stars electronic starter kit for raspberry
I am not happy with this product at all because it had one damaged screw. It was completley flattened. Read more
Published 2 months ago by michael haddon
5.0 out of 5 stars Excellent
Came 7 days early , awesome
great for starting out love it
highly recommend this product
reasonably priced product
thanks for the instruction website
Published 3 months ago by balthazar jones
5.0 out of 5 stars Perfect!
I considered cases but think that this kit is much more in the spirit of the Raspberry Pi. It was very easy to wire up the LEDs and to run a Python program to switch them on.
Published 3 months ago by Mark
4.0 out of 5 stars Elegant Educational Easy
Okay so it is no more than a stand to a electronic component but in creating the space for the breadboard; styling the clear plastic boards with clean edges and easily assembled... Read more
Published 3 months ago by Loudmouthman
4.0 out of 5 stars Good starter kit
This is a good starter.
To get going you need the RPi, a number of cables (including power) and a correctly sized/type memory card.
This is a good bit of kit otherwise.
Published 4 months ago by Mr. M. Johnson
4.0 out of 5 stars Nice little collection of bits and pieces
Nice little collection of bits and pieces. Had to hunt in google for useful projects but that wasnt too hard . 4.5 /5 . Read more
Published 5 months ago by Frogmort
5.0 out of 5 stars Good
Very good item. Prefect for those who want to start out earning how to use the GPIO output of the Raspberry Pi and even soem advanced uses.
Published 7 months ago by serraz
4.0 out of 5 stars Initial disappointment turned into delight
I was hugely disappointed with this breadboard/breakout kit. I opened it today having finally(!) received my raspberry Pi and found it rather incomplete. Read more
Published 7 months ago by j.heywood@btinternet.com
